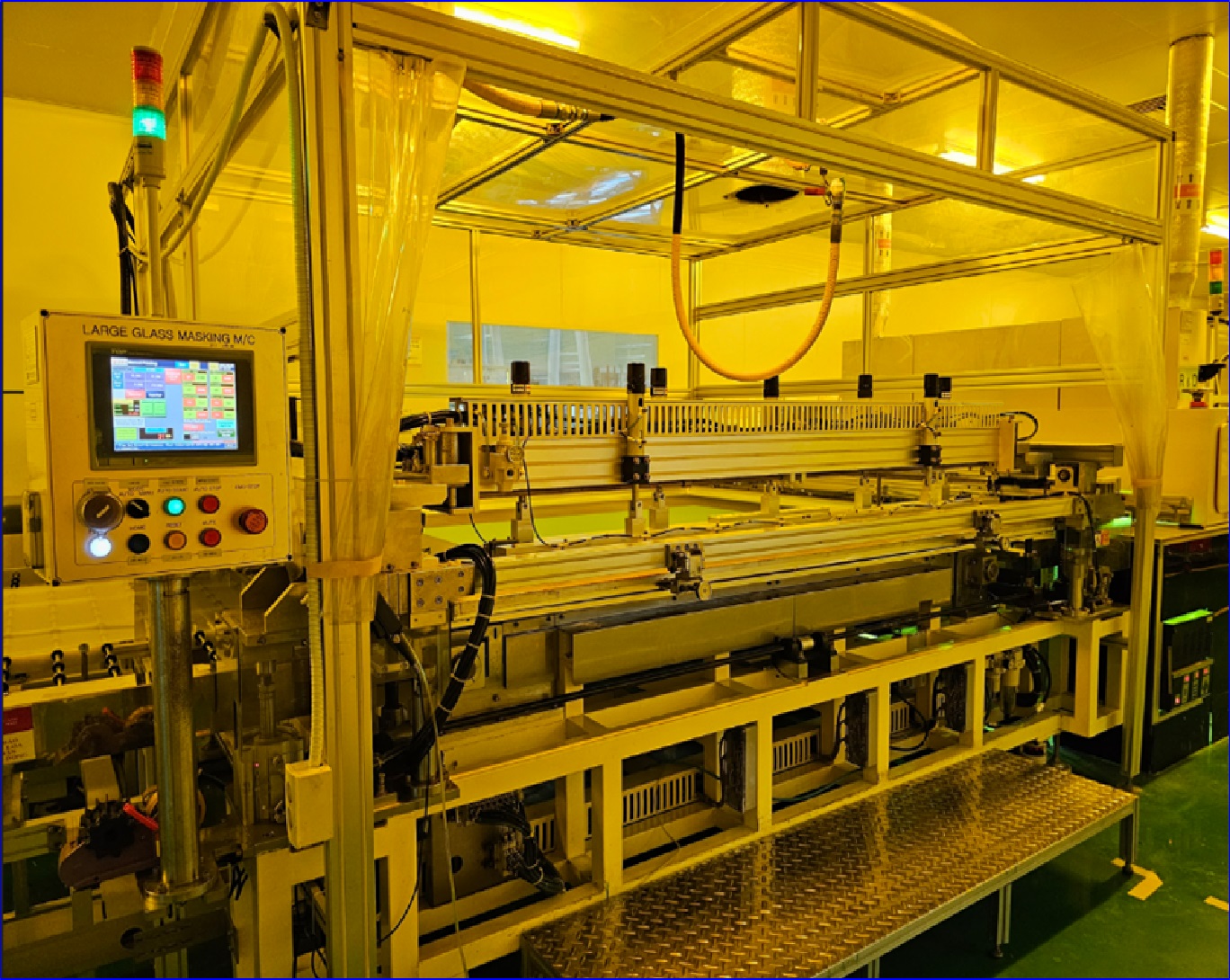

Industrial Automation Equipment

ProductsIndustrial Automation EquipmentIT Glass

IT Glass

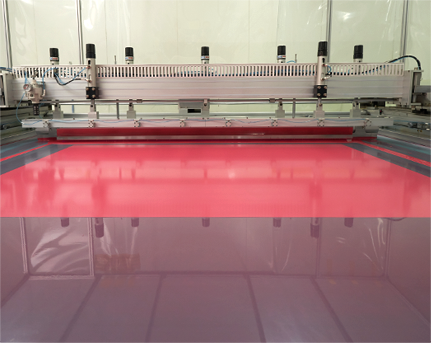

UV Ink Printer

UV Ink Printing for Large Glass surface protection

Core Technology

Linear positioning precision
Repeat precision
Nozzle Moving CNC Servo Control

Specification

Size	L3400 x W2500 x H1700
Capacity	1sheet / 60sec
Special Unit	Squeeze Head, Head Moving Unit UV & LED Dryer, Reverse Conveyor

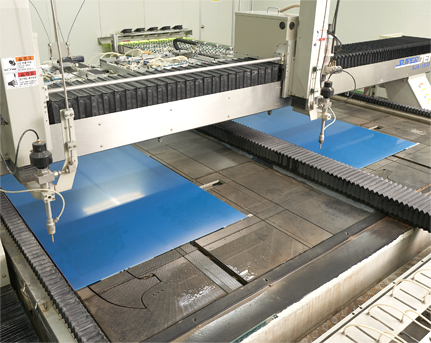

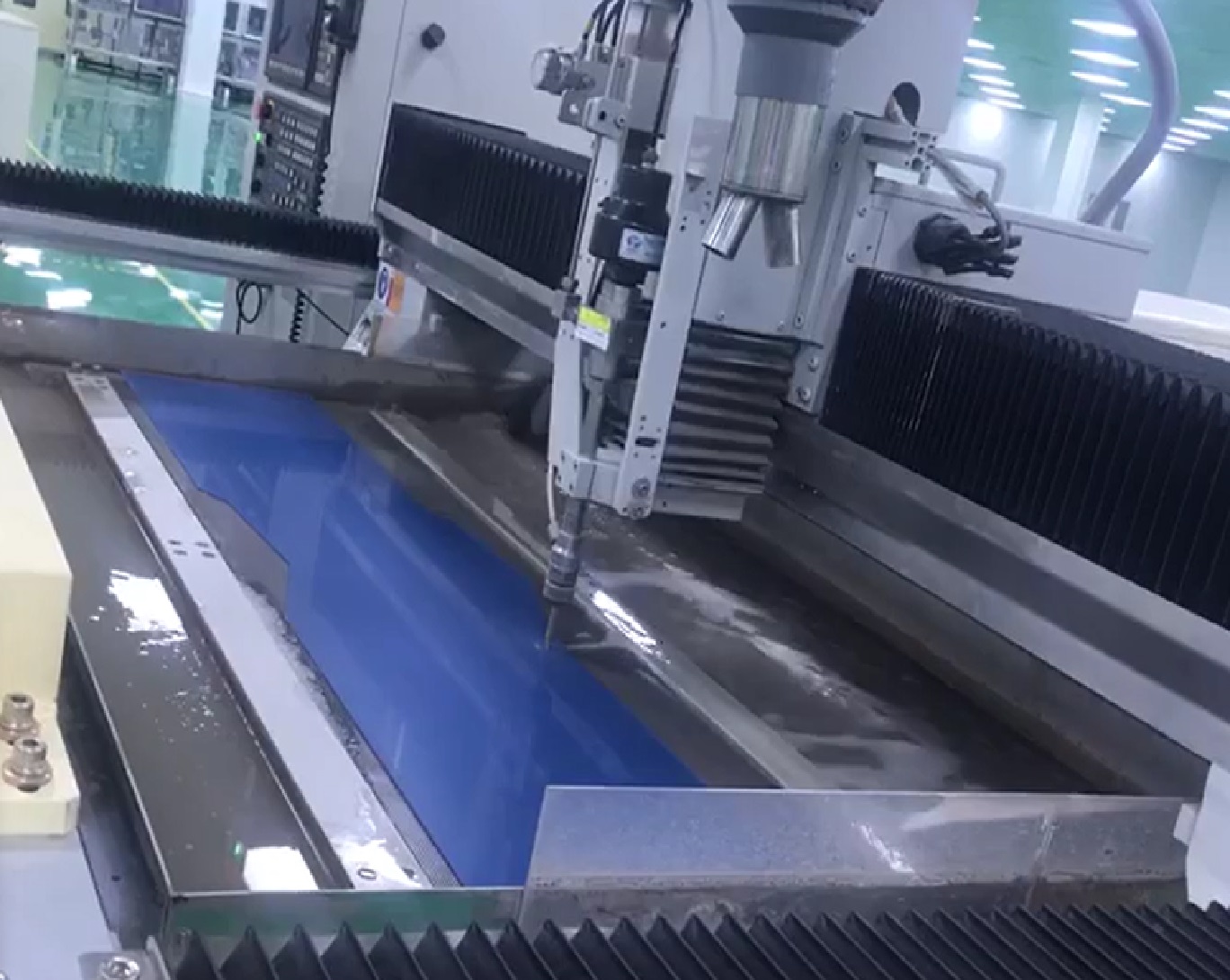

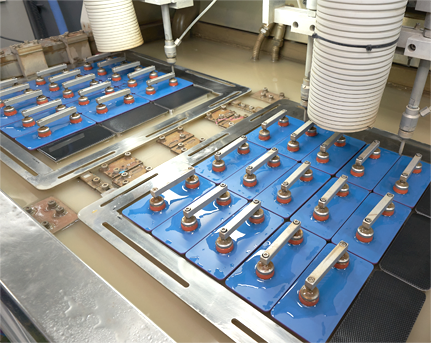

Large Water-Jet Cutter

Large glass cutting by spraying abrasive at high speed using nozzle

Core Technology

Linear positioning precision
Repeat precision
Nozzle Moving CNC Servo Control

Specification

Size	L4300 x W3000 x H2300
Capacity	2sheet / 90sec
Special Unit	Cutting Table, Nozzle Moving, High Pressure Pump System, Abrasive Tank

Cell Water-Jet Cutter

Medium glass cell cutting by spraying abrasive at high speed using nozzle

Core Technology

Linear positioning precision
Repeat precision
Nozzle Moving CNC Servo Control

Specification

Size	L2150 x W1760 x 1830
Capacity	2 ZONE * 1~5 sheet/60sec
Special Unit	Cutting Table, Nozzle Moving, High Pressure Pump System, Abrasive Tank

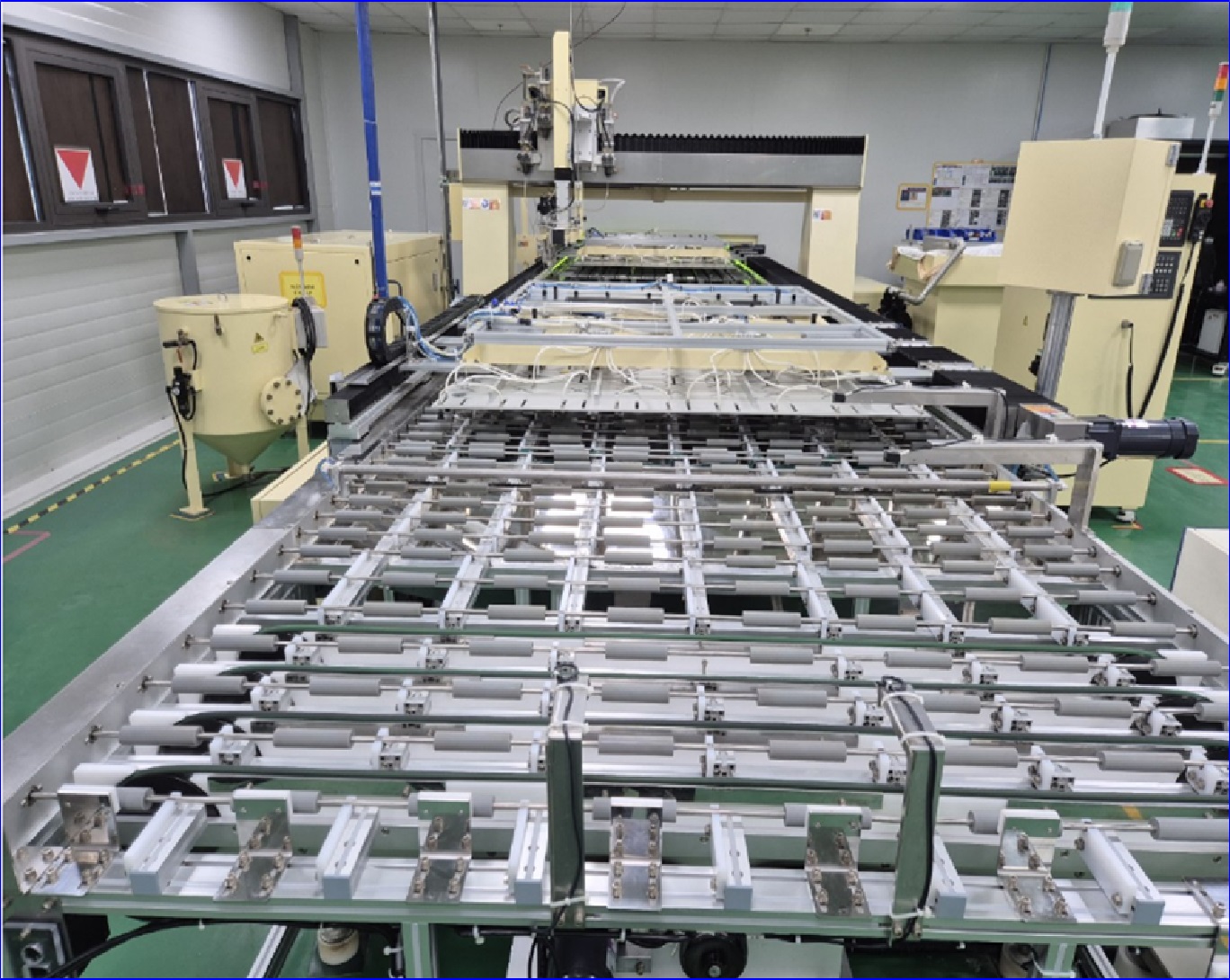

Automobile Large Glass Cutting System

Front Glass Cutting System for Automobile

Core Technology

Variety Glass sizes can be Cut
CAD/CAM Precision Design Management
Improve Cutting Precision by Applying CNC Servo control Device

Specification

Machine Size	[L] 6,000mm * [W] 5,000mm * [H] 2,000mm
Glass size	Max : [X] 1,500 * [Y] 1,950mm * [Z] 200mm
Capacity	360sec[Include Un/loading]
Special Unit	X,Y,Z-Axis Servo Motor, Cutting 2Head, Abrasive Auto Supply & Regulator Water Hight Pressure Pump Oil Chiller Water Storage Tank Load/Unload Transfer Unit

Automobile Middle Glass Cutting System

Front Glass Cutting System for Automobile

Core Technology

Multiple Modeling Cuts are Possible
CAD/CAM Precision Design
X,Y,Z Axis Servo Motor
Improved Machine Precision with CNC Controller

Specification

Machine Size	[L] 3,970mm * [W] 5,160mm * [H] 1,850 mm
Glass size	Max : [X] 1,250 * [Y] 650mm * [Z] 150mm
Capacity	190sec/1sheet
Special Unit	X,Y,Z-Axis Servo Motor, Cutting Head Abrasive Supply Regulator Unit. Cutting Table Jig, Water Hight Pressure Pump Oil Chiller Water storage Tank

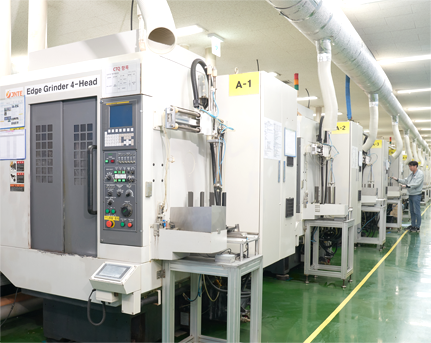

CNC Grinder

Precision grinding of four edges of glass after cell cutting completion

Core Technology

4 Head Grinding Uniformity
Linear, repeat precision
CNC Servo Control

Specification

Size	L2040 x W2420 x 2470
Capacity	(5” Glass) 4pcs / 180sec
Special Unit	4 Head Spindle, Centering Chuck Jig, CNC Stage, Auto Lo/Unloading

Automobile Glass CNC Grinding System

Facilities for Grinding the Front Display Glass of Automobile

Core Technology

X,Y,Z Servo Motor
Ball Bearing Spindle 4Axis
4Glass can be Processed Simultaneously
Precision Processing using CAD/CAM
CNC Controller

Specification

Size	[L] 5,620mm * [W] 2,800mm * [H] 2,480 mm
Capacity	760sec/4sheet
Special Unit	Auto Load/Unloading Unit, 4Head Vaccum Glass Jig, 4Head Spindle/Grinding Tool Unit, 4Head Glass Centering Unit, 4Head Glass Index Jig

3D Heat Pressing MC

Heat-form 2D Glass into 3D Glass

Core Technology

Heat Control
Forming Mold Design
Auto Lo/Unloading

Specification

Size	L2160 x W3700 x 215
Capacity	1pcs / 35sec
Special Unit	Heating Chamber, Mold, Mold Cleaning, Auto Lo/Unloading

Automobile Glass Auto Heat Forming System

Heat-Forming Facility for Front Display Glass of Automobile from 2D to 3D

Core Technology

40~900℃ Temperature Control, Manageable
Manage each Zone Temperature Separately
Using Cartridge Heater, Thermal efficiency management
3D Forming Technology with Precise Control of the Pressure amount with Load Cell

Specification

Size	[L]7,830mm * [W]3,080mm * [H]2,740 mm
Capacity	660sec/1ea
Special Unit	Pre-Heating Zone, Press Heat Forming Zone Unit Annealing, Cooling unit Mold Cleaning Unit, Mold Auto Load/Unloading Unit

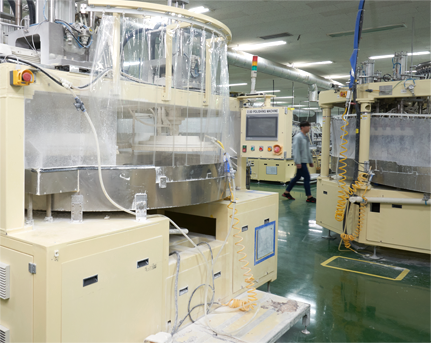

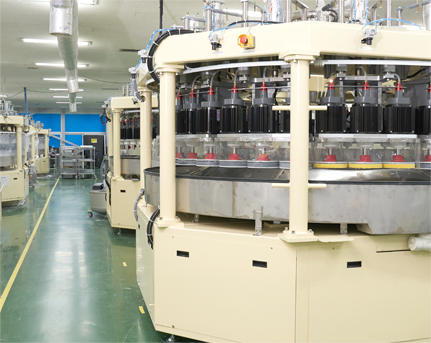

3D Polishing-Front MC

Formed 3D Glass front-side polishing

Core Technology

Polishing Uniformity
Jig design
Brush & abrasive Control

Specification

Size	L2400 x W2000 x 2400
Capacity	120pcs
Special Unit	Index Table, Brush Up/Down, Jig, Abrasive Tank

3D Polishing-Rear MC

Formed 3D Glass rear-side polishing

Core Technology

Polishing Uniformity
Jig design
Brush & abrasive Control

Specification

Size	L3200 x W3000 x 2650
Capacity	48pcs
Special Unit	Index Table, Brush Up/Down, Jig, Abrasive Tank

3D Polishing-Rear Partial

Formed 3D Glass rear-side long-/short-edge partial polishing

Core Technology

Polishing Uniformity
Jig design
Brush & abrasive Control

Specification

Size	L2560 x W2360 x 2150
Capacity	24pcs
Special Unit	Transfer Unit, Brush Up/Down, Jig, Abrasive Tank

3D Pad Printer

Formed and Tempered Glass rear-side Pad Printing

Core Technology

Pad production, Press
Pad Ink transfer (Etching Plate)
MIR drying
Cam Type Glass Centering

Specification

Size	L1180 x W1670 x 2070
Capacity	2pcs / 30sec
Special Unit	Silicon Pad, Etching Plate, Centering Jig, Pad Dry & Clean

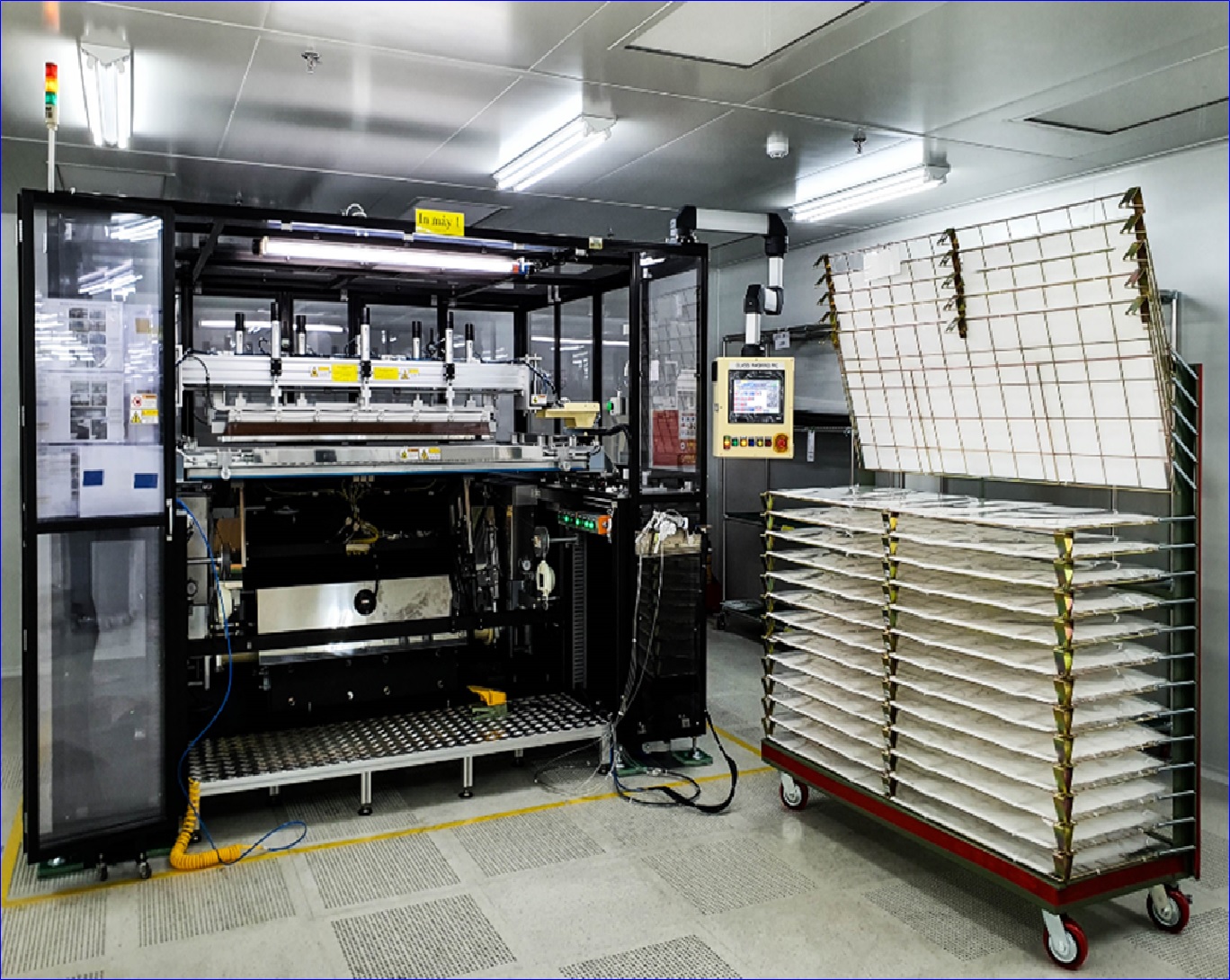

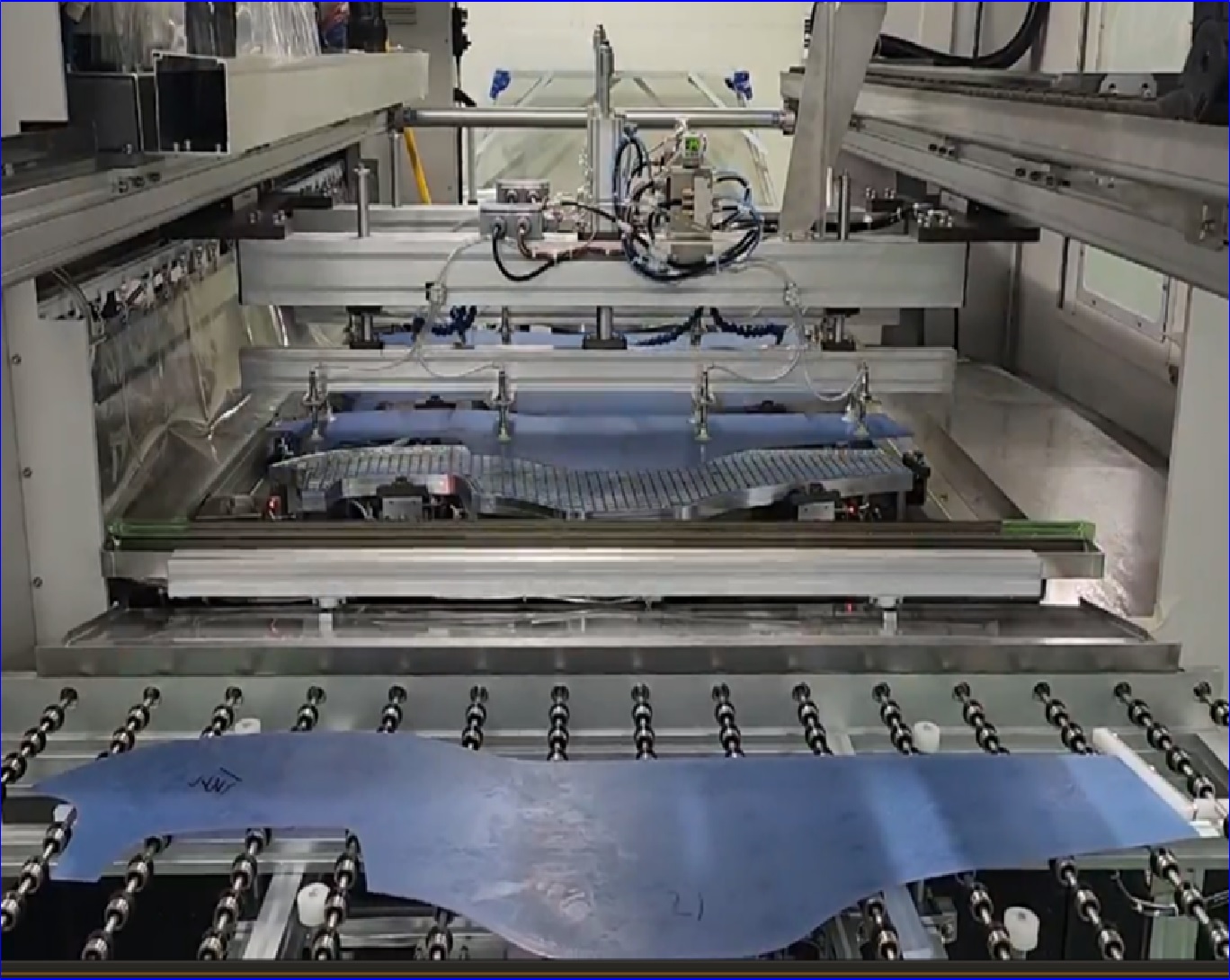

Automobile Glass Silk Printer

Large Glass for Automobile UV Ink Printing Machine for Surface Protection

Core Technology

UV Ink Printing on Large-area Glass surface
Large-area Glass Print one time
Fine Adjustment of Print thickness
Accurate adjudtment of Presure
UV Ink Auto Pumping

Specification

Machine Size	[L] 3,400mm * [W] 2,650mm *[H] 2,200mm
Glass size	Max : [L] 1,900 * [W] 1,500mm
Capacity	150sec/1sheet
Special Unit	UV Ink Auto Pumping, Scraper, Squeegee Unit Power Baese, Silk Screen Unit. Printing Head/Trasfer UV Dryer

Automobile Glass Silk Printer

Front Glass Printing for Automobile

Core Technology

Using Vision Camera, Glass & Mask Align
2D, 3D Glass Printing
Securing Print Quality with using Servo motor

Specification

Size	[L] 2,700mm * [W] 2,770mm * [H] 2,400mm
Capacity	36sec
Special Unit	Align Vision Camera Unit, X,Y,Z Servo Motor, 3D Printing Jig Unit, Scraper, Squeegee Unit, Printing Head/Trasfer Unit

3D Vacuum Laminator

Deco Film Laminating on 3D Glass using high vacuum

Core Technology

High-vacuum Chamber
Press Pad mold technology

Specification

Size	L1640 x W1600 x 2740
Capacity	2pcs / 30sec
Special Unit	Silicon Pad, Vacuum Chamber, Glass Jig, Vacuum Pump

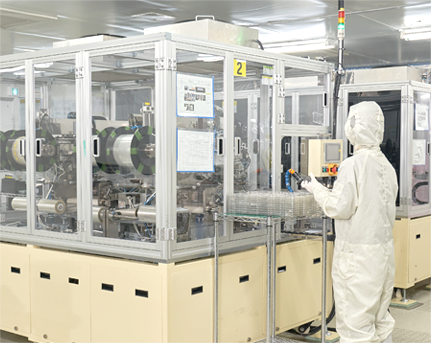

UV Film Laminator

UV Film and print Film Laminating using rollers

Core Technology

Roll Laminator Control
Positioning precision

Specification

Size	L1240 x W1200 x H2000
Capacity	2pcs / 30sec
Special Unit	Print Film Jig, UV Film Jig, Urethane Roller, Swing Unit

Shipment Laminator

Protective Film Laminating on glass front/rear before shipment

Core Technology

Roll Laminator Control
Positioning precision

Specification

Size	L3220 x W1750 x H2000
Capacity	2pcs / 8sec
Special Unit	Glass Align Unit, Film Feeding Unit, Glass Jig, Film Laminating Unit

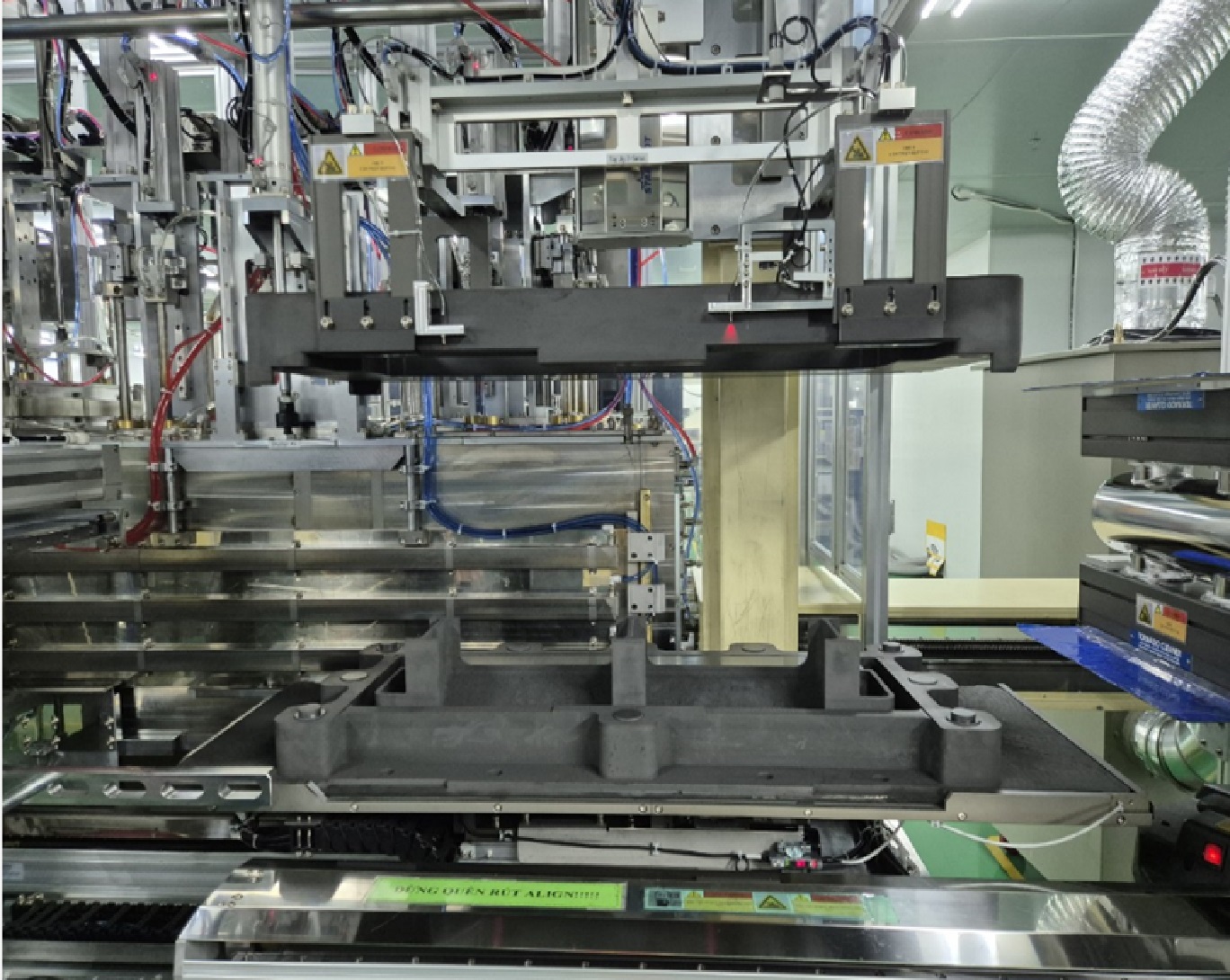

Flexible OLED Module Line

Auto Laminating of Flexible OLED and TSP followed by 3D Glass Laminating

Core Technology

Base Film Hole Guide
Roll Laminating
Vacuum Laminating
Transfer Control

Specification

Size	L6970 x W2760 x H2150
Capacity	1pcs / 15sec
Special Unit	Silicon Pad, Vacuum Chamber, Glass Jig, Vacuum Pump

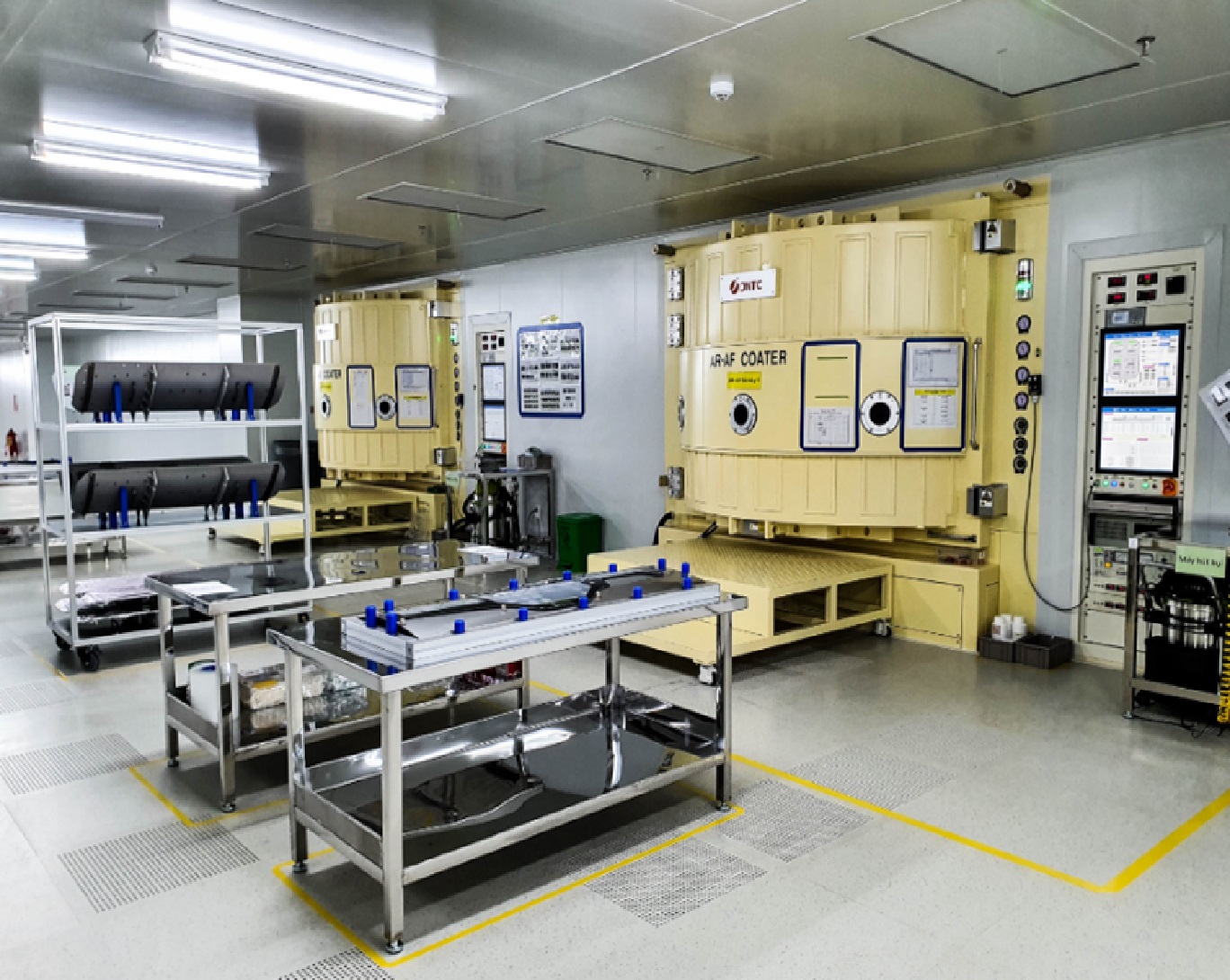

AF Coater

Anti Finger coating on 3D Glass using PeCVD & Thermal Evaporation method

Core Technology

High Vacuum Chamber
Plasma Treatment
Rotation Jig
Evaporation Coating

Specification

Size	L4360 x W3450 x H3100
Capacity	320pcs / 40min (7
Special Unit	Vacuum Chamber, Rotary & Booster Pump Chiller, Si Target, SiO2, Plasma

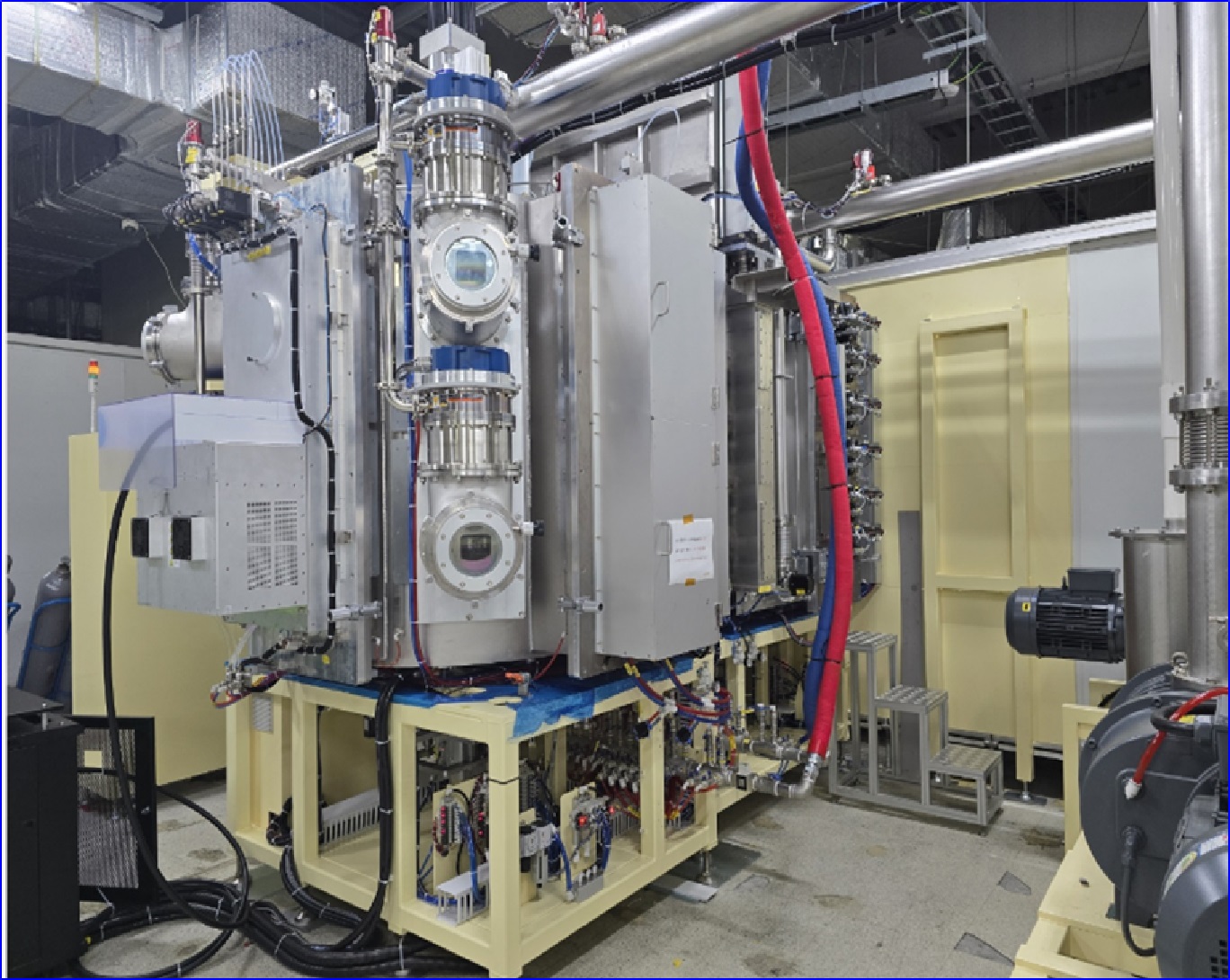

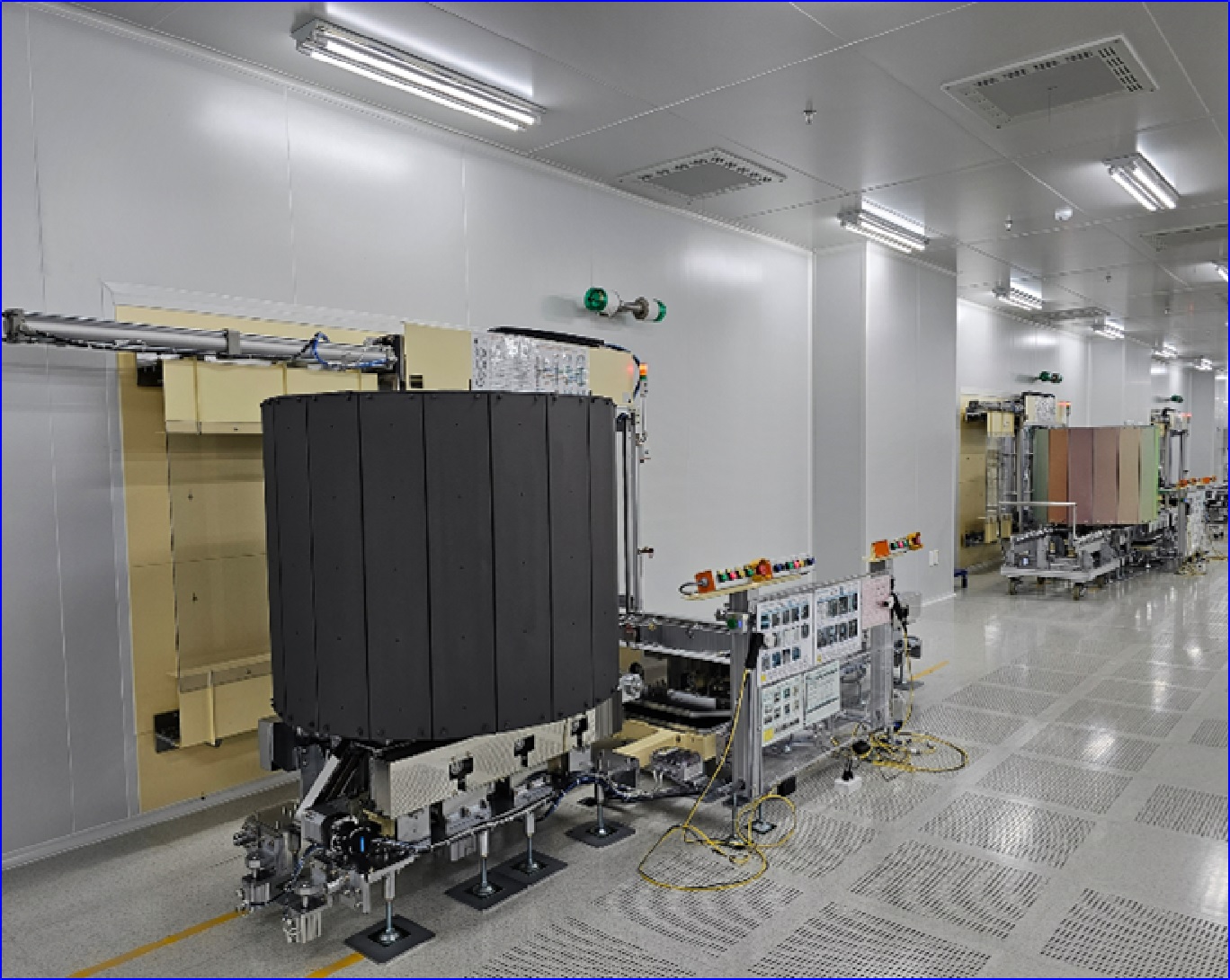

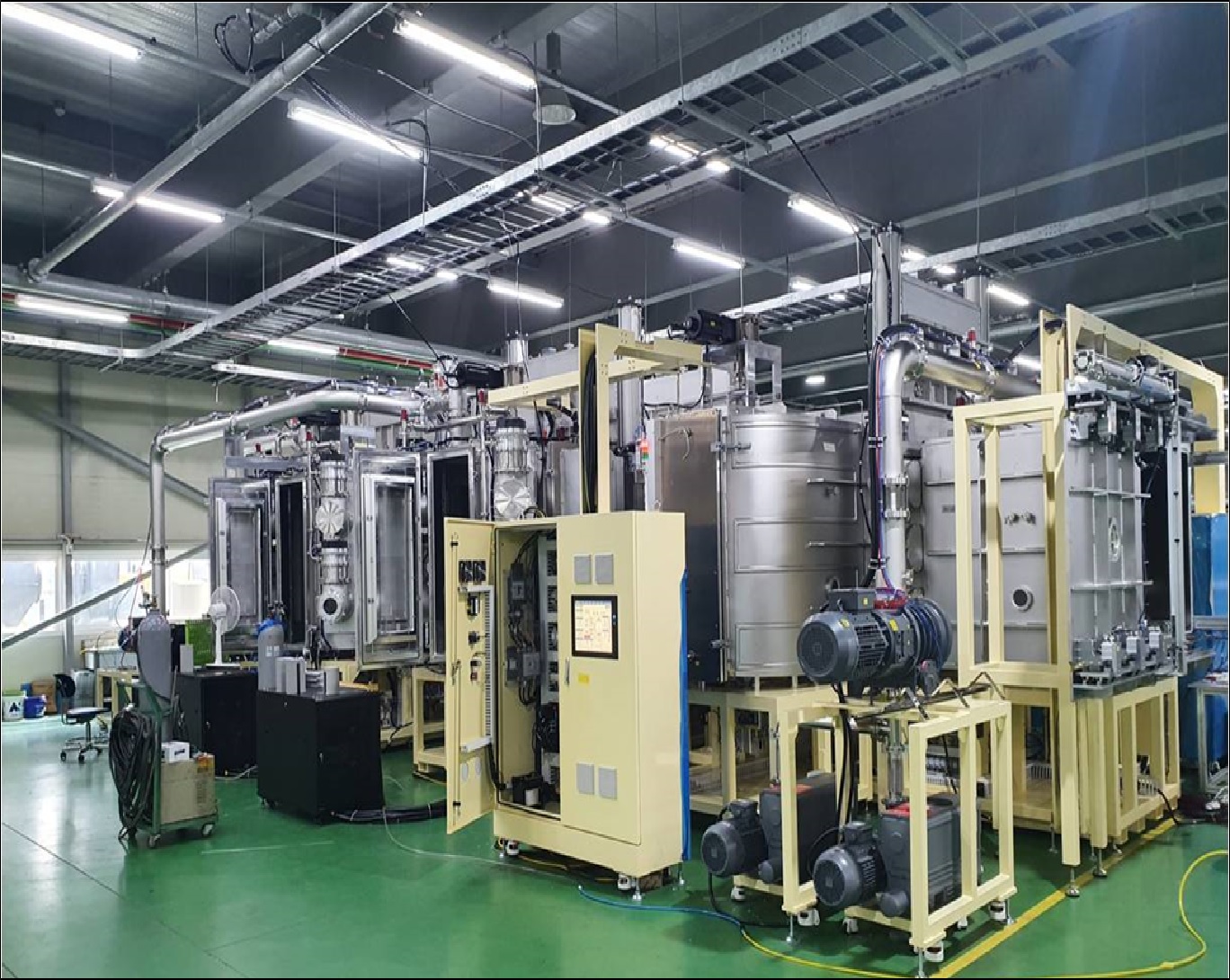

Auto Multi Hard Coating System

Watch, Mobile Glass with Multi-layer Thin Film Hard Coating & AF Coating System

Core Technology

Multi-Layer thin Film Coating
Pre-treatment Heating function of Halogen Heating method
Secure thin Film reliability with ICP Surface Treatment
Increase productivity with dual twin type bipolar method
Can form a Clean, High Vacuum using TMP
Can operate specific Chambers and Drums single operation
Run Hard Coating 3 Chambers Simultaneously to Enable Process Rotation
Using Auto Cartridge can insert up to 192ea[32ea*6Line] AF Tablet
The gate valve allows the Chamber to Maintain Vacuum
Apply 64 Pin masks per Target, Less than 0.8% Deviation within batch
Loading Hard CoatingAF Coating  Unloading Full Automation

Specification

Size	[L] 13,525mm * [W] 7,000mm * [H] 3,950mm
Capacity	200EA/1Batch.
Special Unit	HARD COAT 3EA, AFCOAT 1EA, PRE-HEAT 2EA Cating 구성,Drum Rotation 80rpm/min,Load->Pre-Heat->Hard Coat’->AF Coat->Unload full Automation,PLC,PC Controll System,Rotary.Booster/Turbo Pump,Bipolar, RF Power Supply Unit

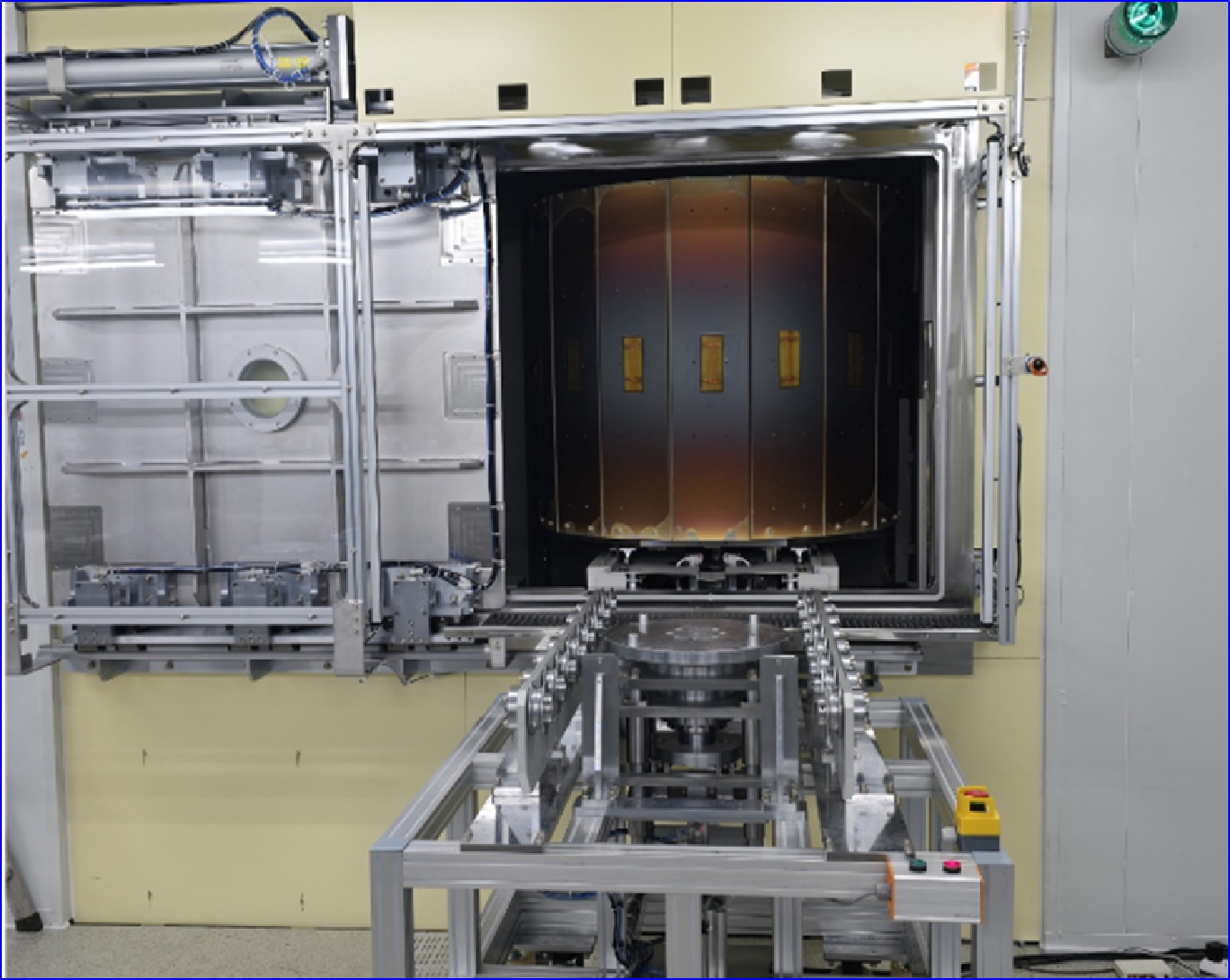

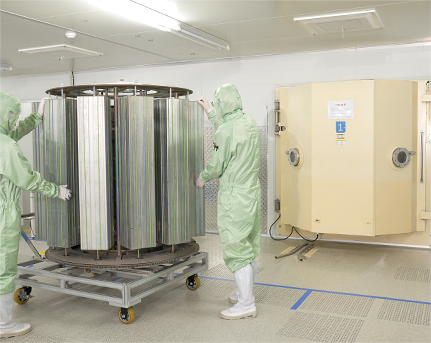

Auto Multi Coating System

System for Coating AR/AF Thin Film on Watch, Mobile Glass

Core Technology

Multi-layer formable
Heating pre-treatment heating function
End hall Type Ion Source 2set, Improve the Reliability of thin Films that fit the Material
Using Crucible 12Heads
It has a dome Structure of Revolution and Rotation to fit the size and shape of the Product
Various thin Film Coatings with Granule, Tablet, Pill, and other Materials
Installing Baffle System on the Oil Diffusion Pump

Specification

Size	[L] 5,400mm * [W] 5,700mm * [H] 3,300mm
Capacity	3,600sec/1Batch [Depends on the Product]
주요 Unit	Dome Jig Rotation Unit. Rotary/Booster Pump. Diffusion Pump I-on Gun Source. Halogen Heater. Polycold System Crucible 12Head Table.

Auto Multi Hard Coating System

Watch, Mobile Glass with Multi-layer Thin Film Hard Coating, AF Coating System

Core Technology

Multi-Layer thin Film Coating
Pre-treatment Heating function of Halogen heating method
Secure thin film reliability with ICP surface treatment
Increase productivity with dual twin type bipolar method
Can form a clean, high vacuum using TMP
Hard Coating 1chamber & AF Coating 1chamber Configuration
Using Auto Cartridge can insert up to 192ea[32ea*6Line] AF Tablet
The gate valve allows the Chamber to Maintain Vacuum
Apply 64 Pin Masks per Target, less than 0.8% Deviation within batch
Loading->Hard Coating->AF Coating->Unloading Full Automation

Specification

Machine Size	[L] 5,510mm * [W] 5,770mm * [H] 3,950mm
Capacity	200EA/1Batch.
Special Unit	Hard coat 1ea, AFCOAT 1EA, PRE-HEAT 2EA coating configuration,Coating Drum Rotation 80rpm/min, Load->Pre-Heat->Hard coat->AF Coat->Unload Full Automation, PLC, Centralized PC management, control function for convenience of operation, Rotary/Booster/Turbo Pump, Bipolar, RF, ICP Power Supply Unit.

Product Inquiry

Jinwoo Engineering (JNTE) (hereafter "Company") complies with the Act on Promotion of Information and Communications Network Utilization and Information Protection, etc., the Personal Information Protection Act, and other regulations and guidelines on the protection of personal information.

Through this Privacy Policy, the Company informs users how, and for what purpose, it uses users' personal information provided to us, and what measures are taken to protect the same.

1. Purpose of Handling (Collecting and Using) Personal Information

The Company handles personal information for the following purpose. The Company does not use personal information for any other purpose and will ask for users' consent before revising the purpose below.

- The Company, products, investor relations, etc. (response to queries and provision of the other services)

2. Personal Information Retention and Use Period

The Company retains and handles personal information only within the statutory handling and retention periods for personal information or the handling and retention periods that users agreed to at the time of collecting personal information. All personal information is destroyed immediately after achieving the purpose of collection and use.

Personal information is retained for a year as evidence of the handling of customer inquiries. However, the Company may retain personal information for longer periods if required by the law.

3. Information Subjects' Rights and Obligations, and the Exercise of such Rights and Obligations.

An information subject may access, request a revision of, and withdraw consent for the personal information registered with the Company anytime. The Company will immediately act on an information subject's request to the Company's personal information department by mail, phone, or email.
In cases where an information subject requests the Company to correct errors in his/her personal information, the Company does not use or provide the personal information until they are corrected.

The legal representative of a child under 14 has the right to access, revise, or withdraw consent on the collection and use of, the child's personal information.

The Company handles the personal information deleted at the request of an information subject or a legal representative as specified in this Privacy Policy and does not access or use the information for any other purposes.

4. Information Items Collected by the Company

The Company collects the following personal information.

- Personal information items collected by the Company: name, email address, and contact number (telephone or mobile number)

5. Destruction of Personal Information

Upon achieving the purpose of collection and use, or at the end of the retention period, the Company destroys the relevant personal information unless further retention is required by a user's consent, the Terms of Use, or the relevant law.

(Method of Destruction)
- Printouts and documents containing personal information: shredding or incineration
- Electronic files: permanent deletion beyond restoration

6. Your Rights, Rights of Legal Guardian, and Exercise of their Rights

The Company does not use "cookies," which store and load information regarding information subjects' use of the Company's services.

7. Measures to Ensure Security of Personal Information

In handling users' personal information, the Company takes the following measures to prevent loss, theft, leakage, alteration, or damage to the information and ensure information security.

(Managerial Measures)
- The Company establishes and implements internal management plans for the safe management of personal information.
- The Company requires its personal information personnel to receive periodical training and participate in awareness-raising activities at least once a year.
- The Company restricts the personnel with access to personal information to the minimum.

(Technical Measures)
- To prevent leakage or damage of personal information by hacking or computer viruses, the Company uses security programs and responds to hacking and other attacks from outside the Company.
- The Company stores/manages information subjects' personal information and passwords in encrypted forms and applies additional security measures when transmitting the same for secure management thereof.

(Physical Measures)
- The Company has designated its computer room, data storage, and other places as restricted areas for access control.

8. Handling of Employees' and Executives' Personal Information

The provisions of this Privacy Policy apply to the personal information of the Company's employees and executives.

9. Personal Information Protection Officer and Manager

The Company has appointed the Personal Information Officer and Manager as follows. They are responsible for the Company's handling of personal information, respond to users' complaints regarding the same, and providing remedies for damage inflicted on users.

Item	Personal Information Protection Officer	Personal Information Protection Manager
Department	Property Management Team	Computer Team
Rank	Head of Office	Head of Team
Name	Dongryeol Lee	Mingu Kang
Contact number	070-4050-3108	070-4008-1239
Email	dylee@thejnt.com	jwadmin@thejnt.com

For information or inquiry regarding infringement of personal information, please contact the following institutions:

- Personal Information Infringement Report Center, Korea Internet & Security Agency (http://privacy.kisa.or.kr / 118)
- Cyber Crime Investigation Center, Supreme Prosecutor's Office (www.spo.go.kr / 1301)
- Cyber Bureau, National Police Agency (www.cyberbureau.police.go.kr / 182)

10. Modification of Privacy Policy

This Privacy Policy applies beginning on the enforcement date (February 8, 2021). In case of any addition, removal, or revision of provisions as per the relevant laws or policies, the Company will inform users through a notice before the enforcement of the revision.

Customer
General

No.	Subject	Downloads	Date
There are no registered notices.

No.	Subject	Downloads	Date
There are no registered notices.

To :
Subject
Name
Email
Message
