Decoration Window

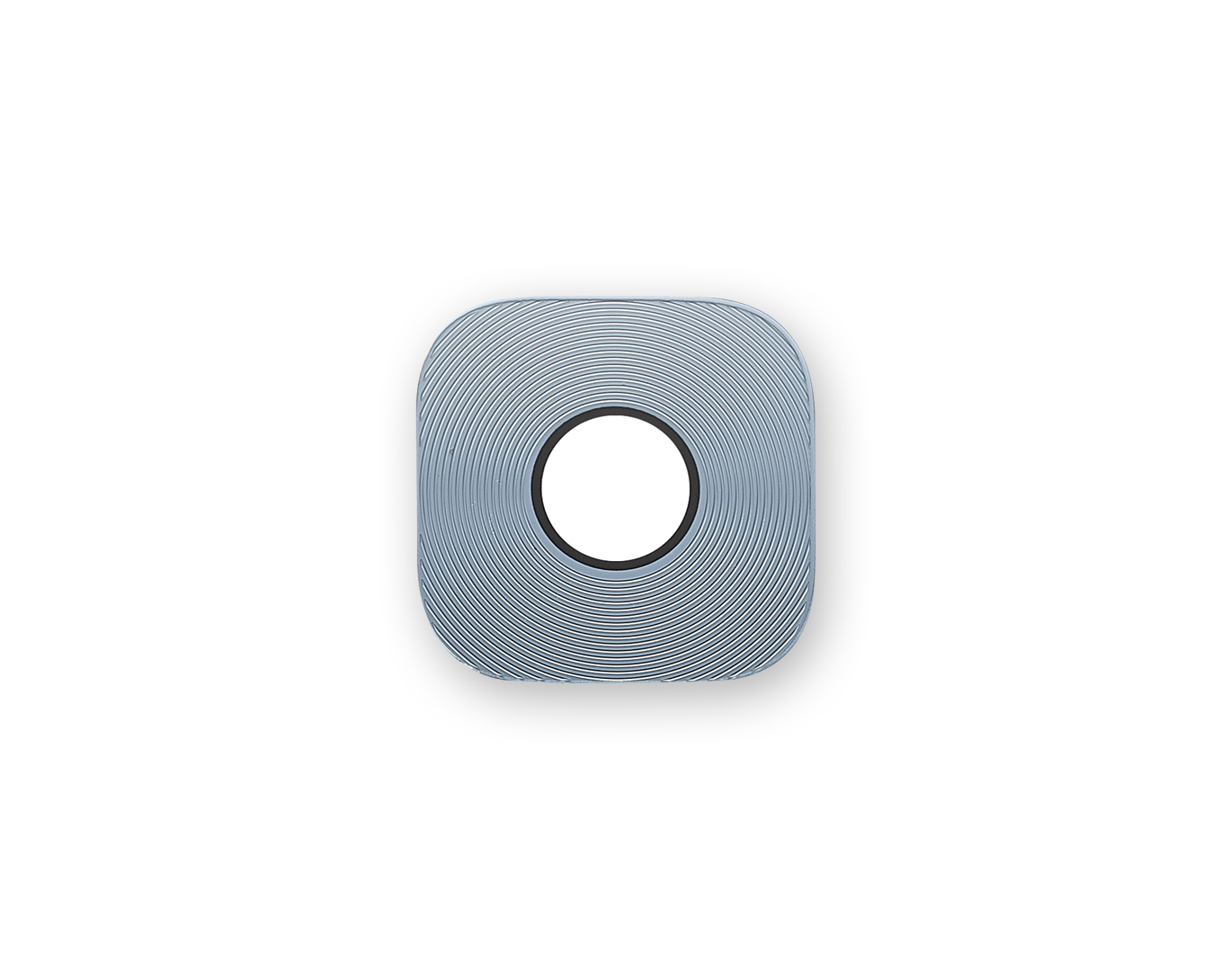

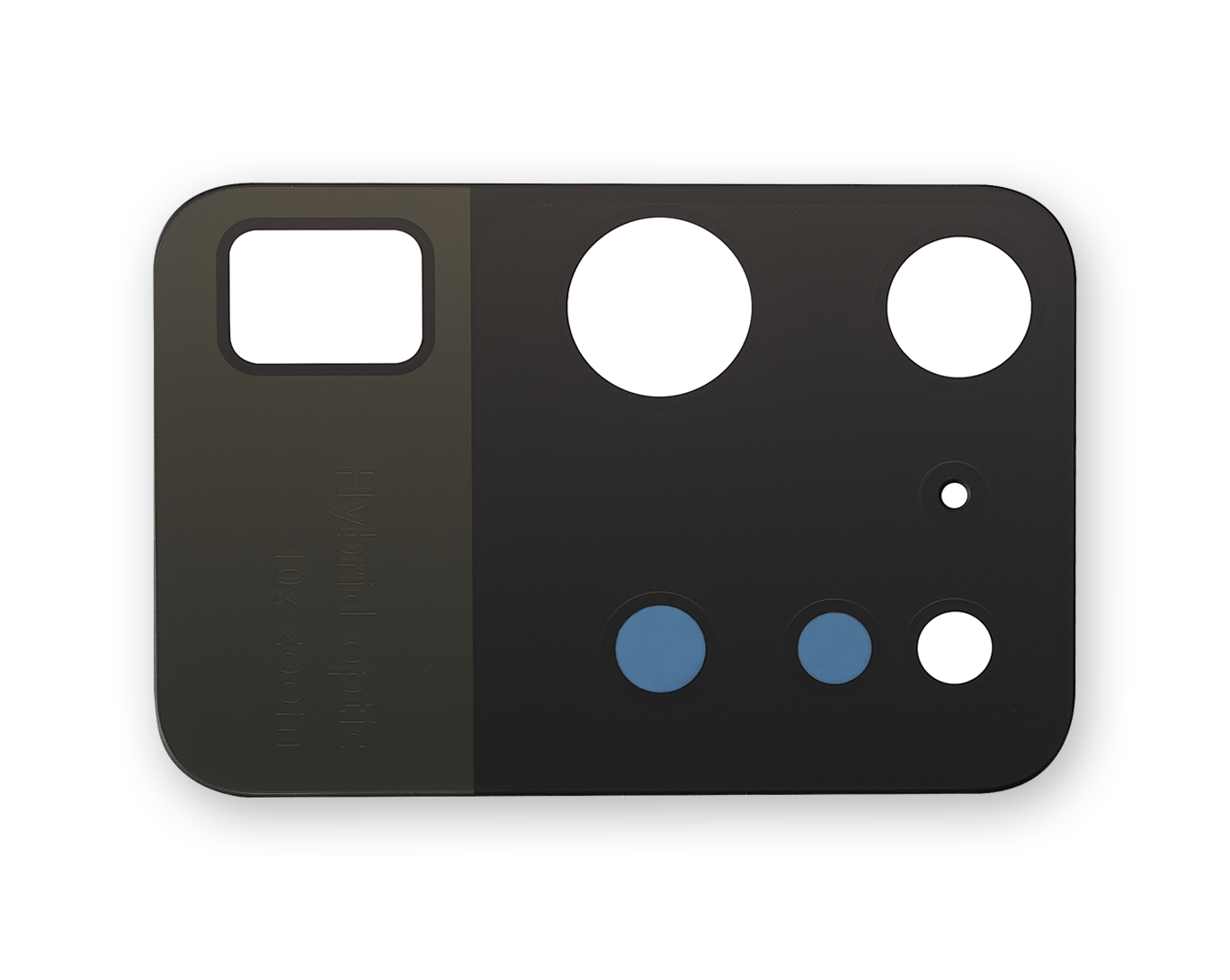

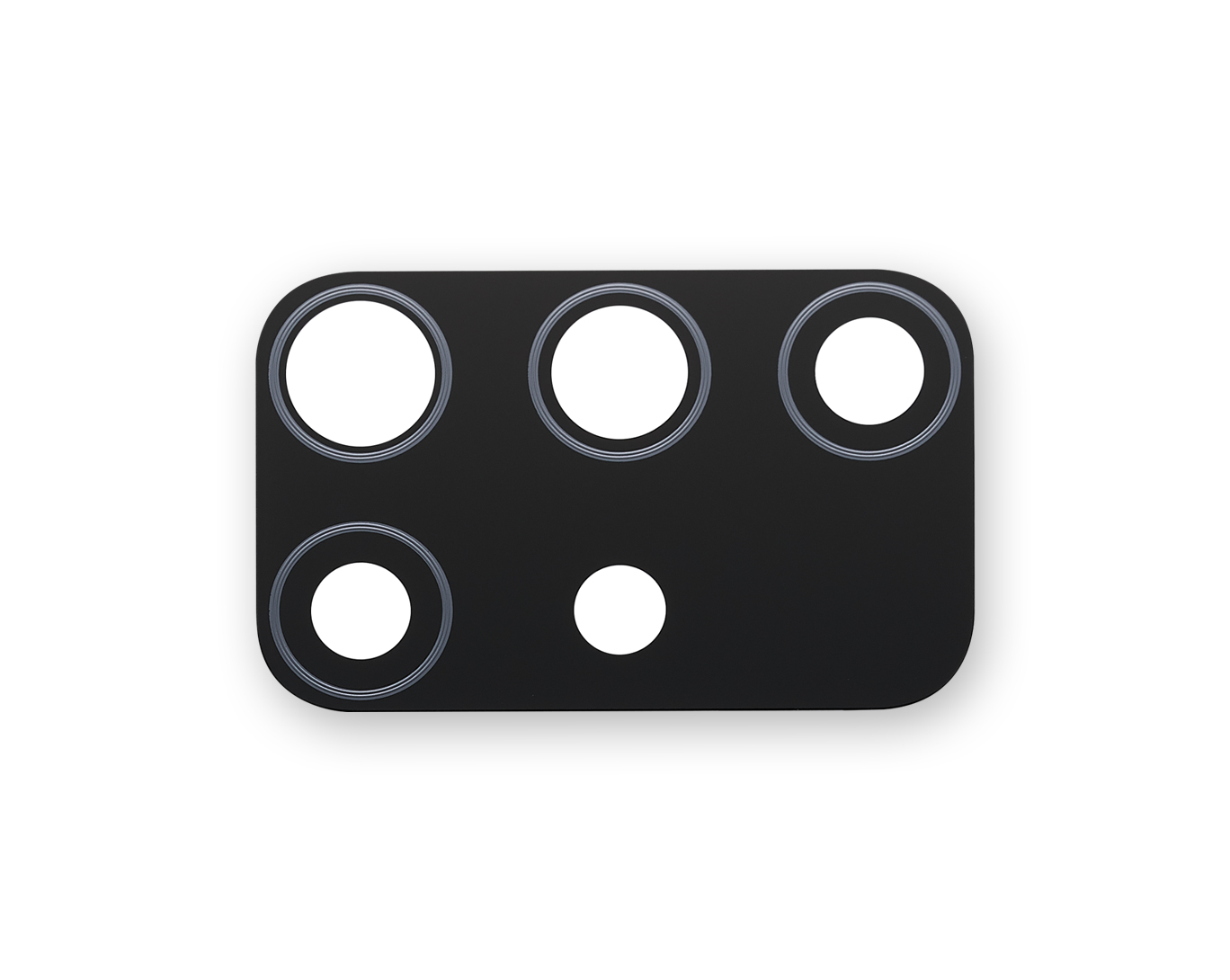

Camera Window_GDE (Glass Direct Etching)
Layer Structure
- Directly imprints patterns and spin lines on the surface of the window glass
- By adding multi-coating to the formed pattern, various colors of the pattern are formed and high luminance is realized.
- Through the GDE-C (Glass Direct Etching with Crystal pattern) method, it is possible to realize infinite pattern design, high luminance, and various colors.
Production Capability
- All processes (Glass processing, Multi deposition, Printing, AR/AF Coating) can be produced internally (16KK/month)

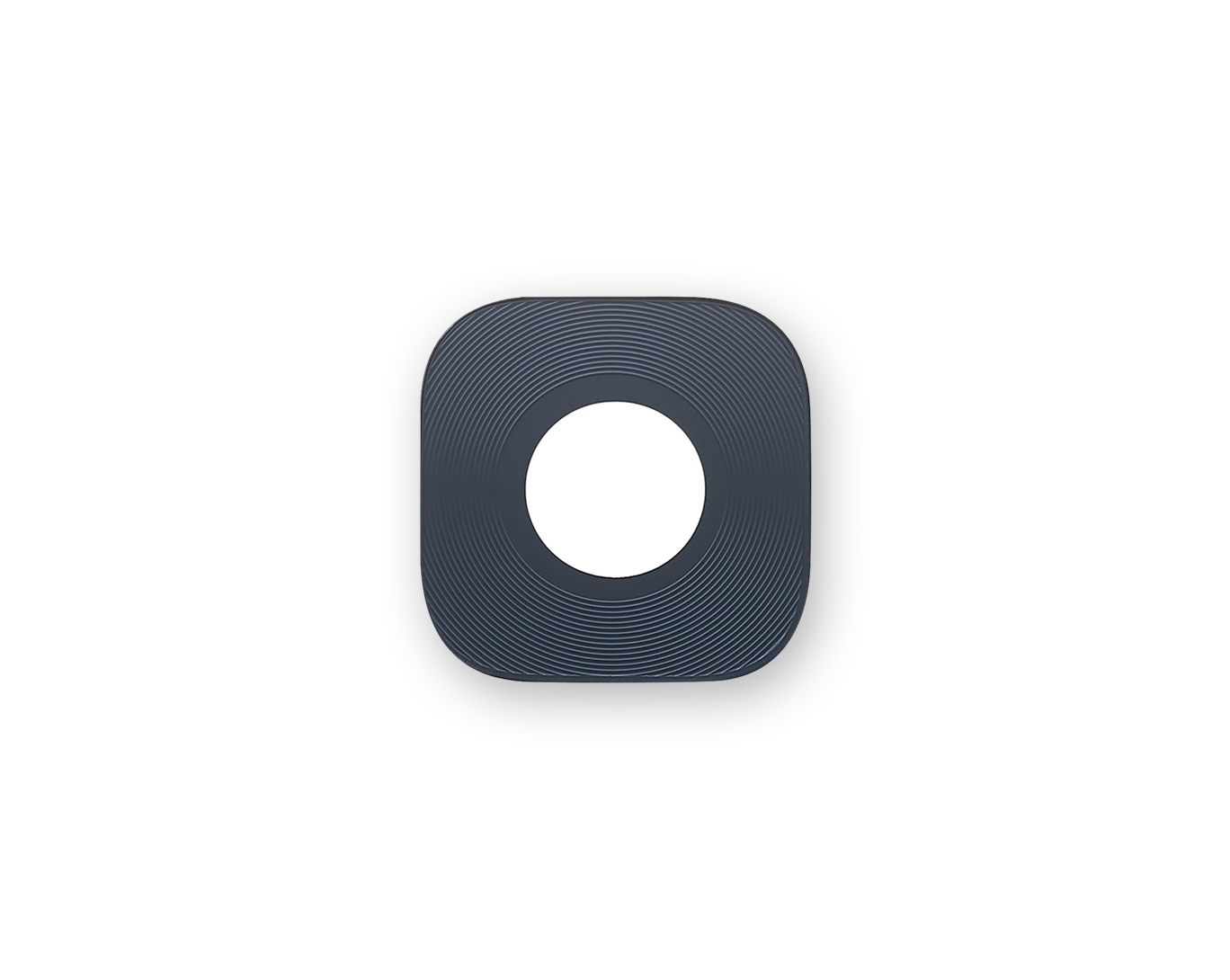

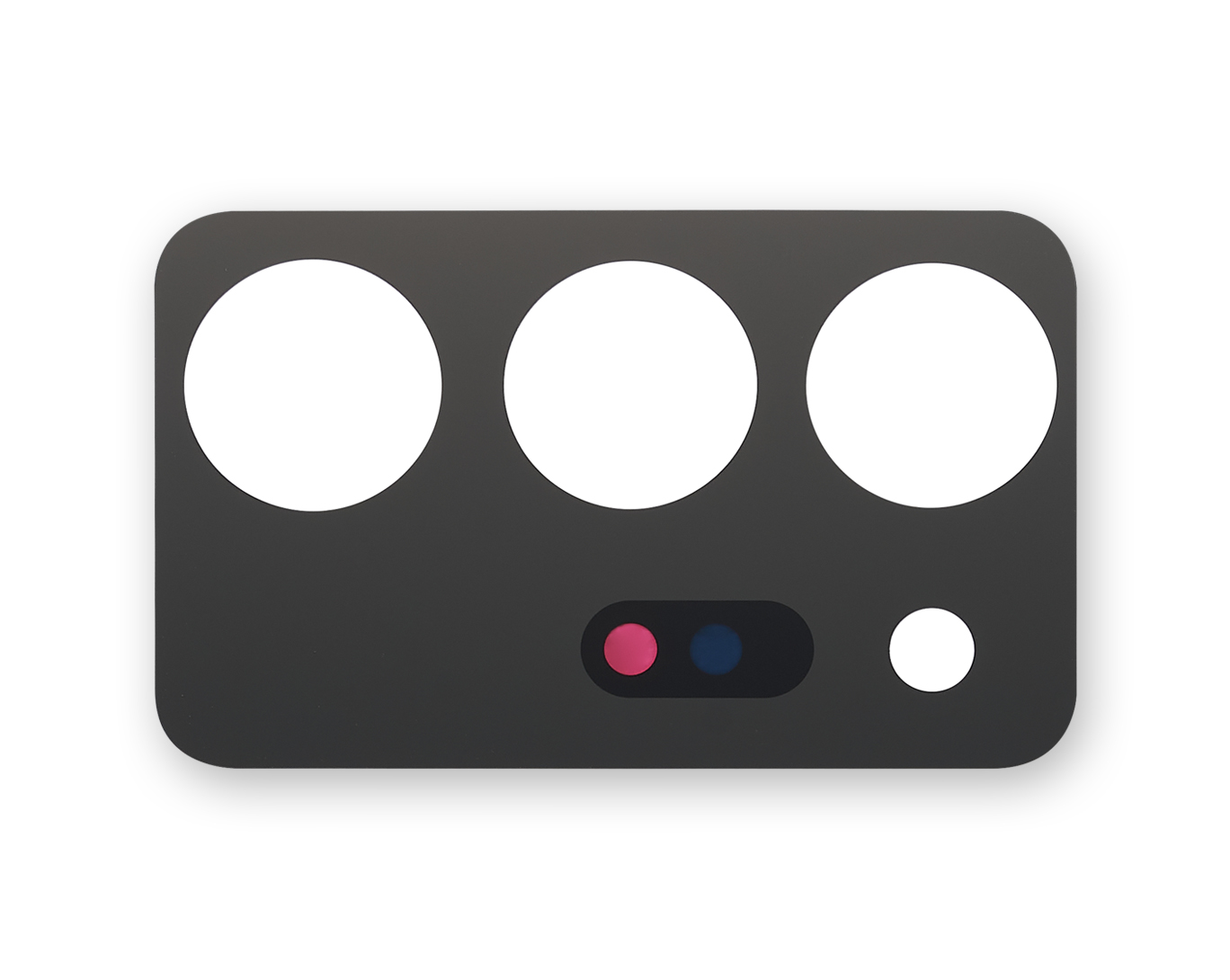

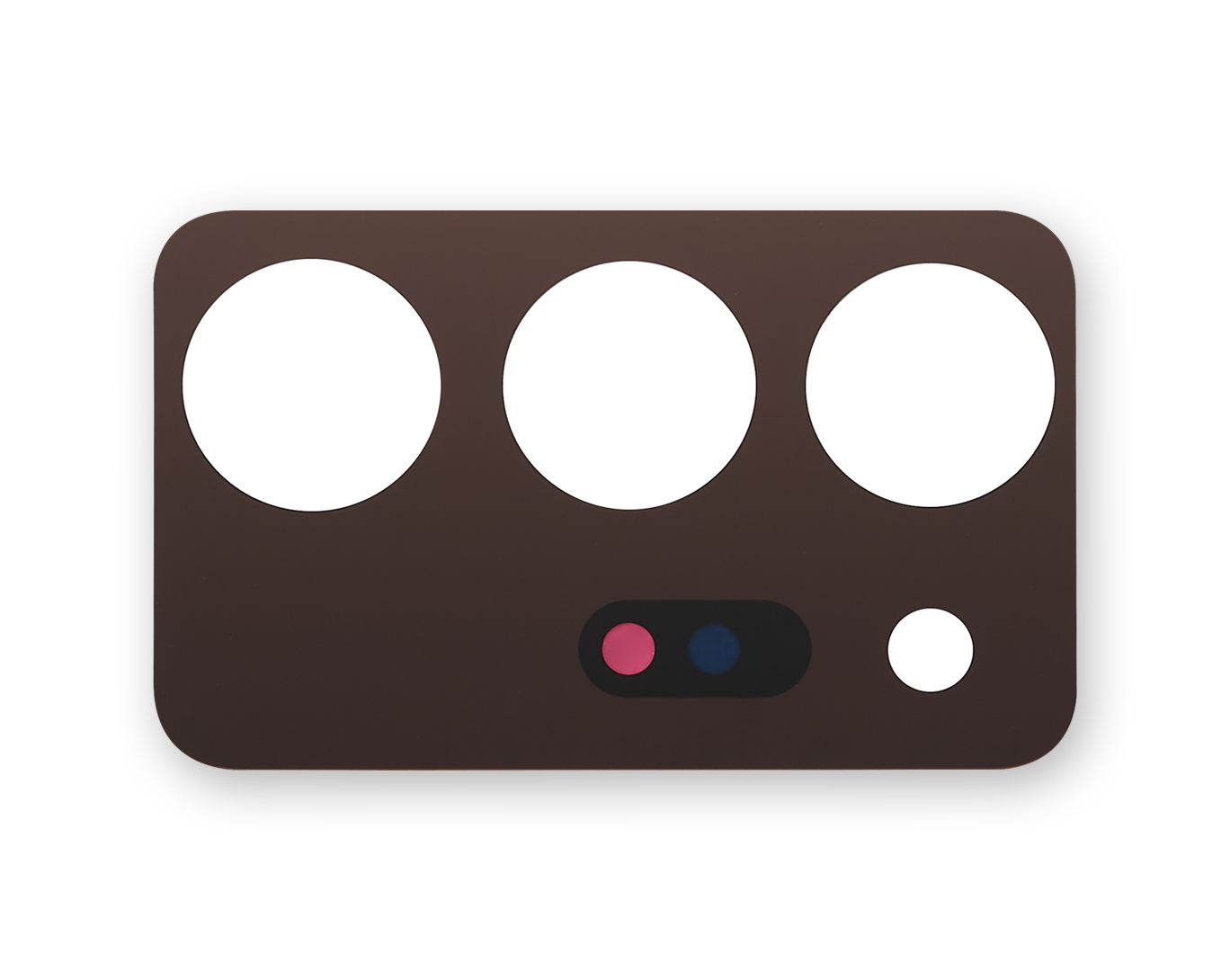

Camera Window_GDM (Glass Direct Molding)
Layer Structure
- A method of directly patterning the glass with UV resin on the window glass using a precision mold with optical performance
- Our GDM pattern has a high design merit with a brilliant spin compared to other companies' methods.
- GDM-H (Glass Direct Molding with Hologram pattern) method to realize infinite pattern design, high luminance, and various colors
Production (Capability)
- All processes (Glass processing, UV Molding, Multi deposition, Printing, AR/AF Coating) can be produced internally (4KK/month)

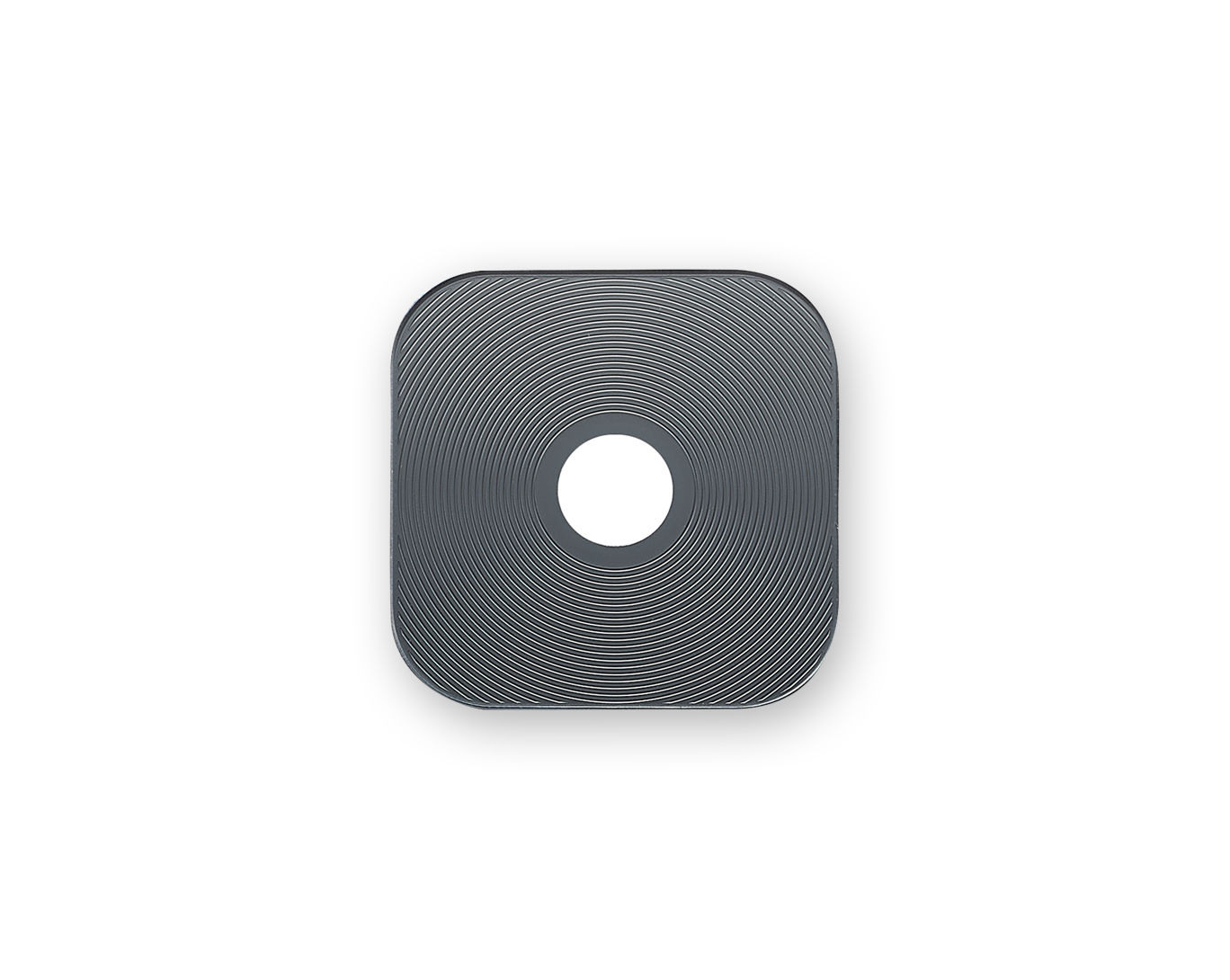

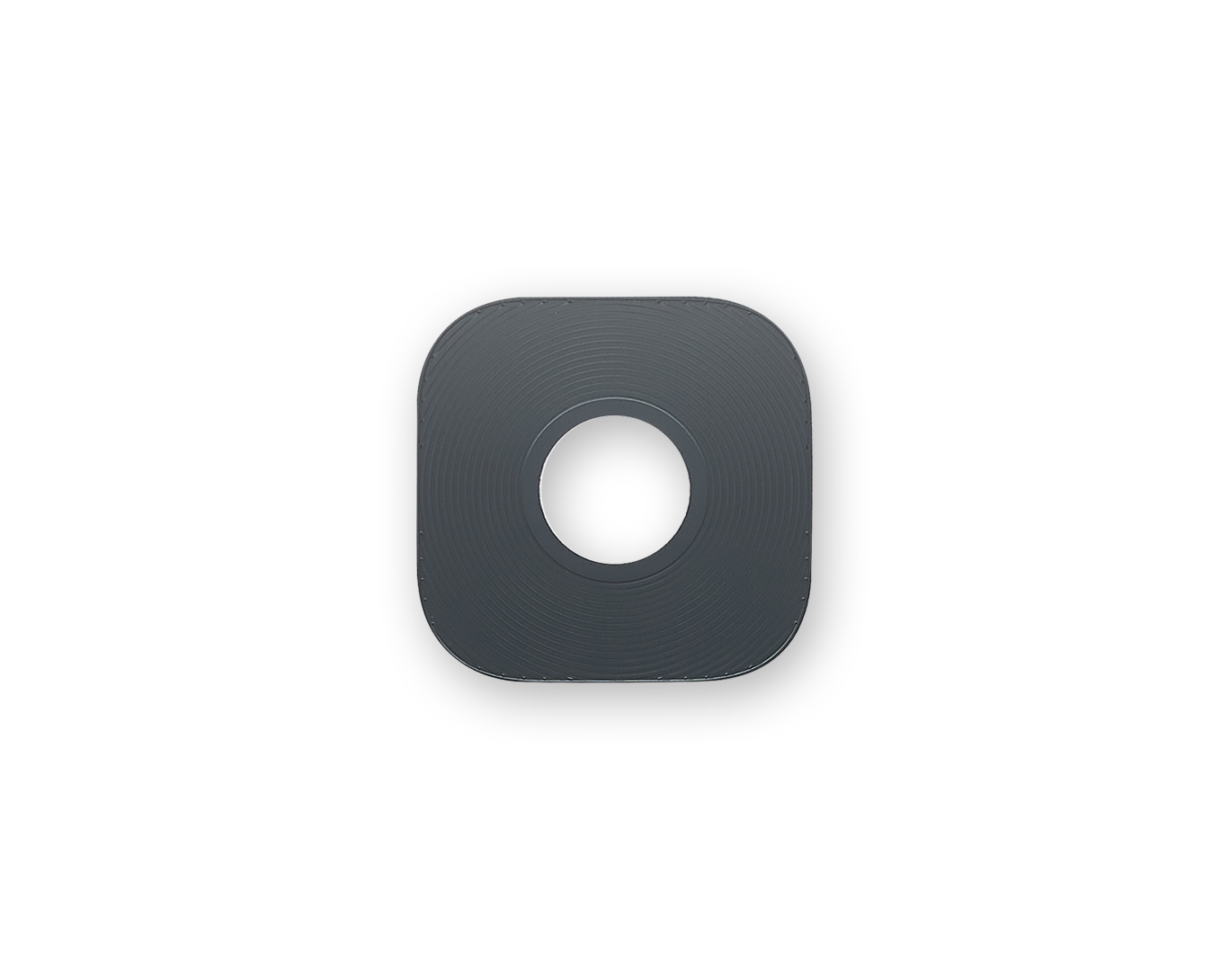

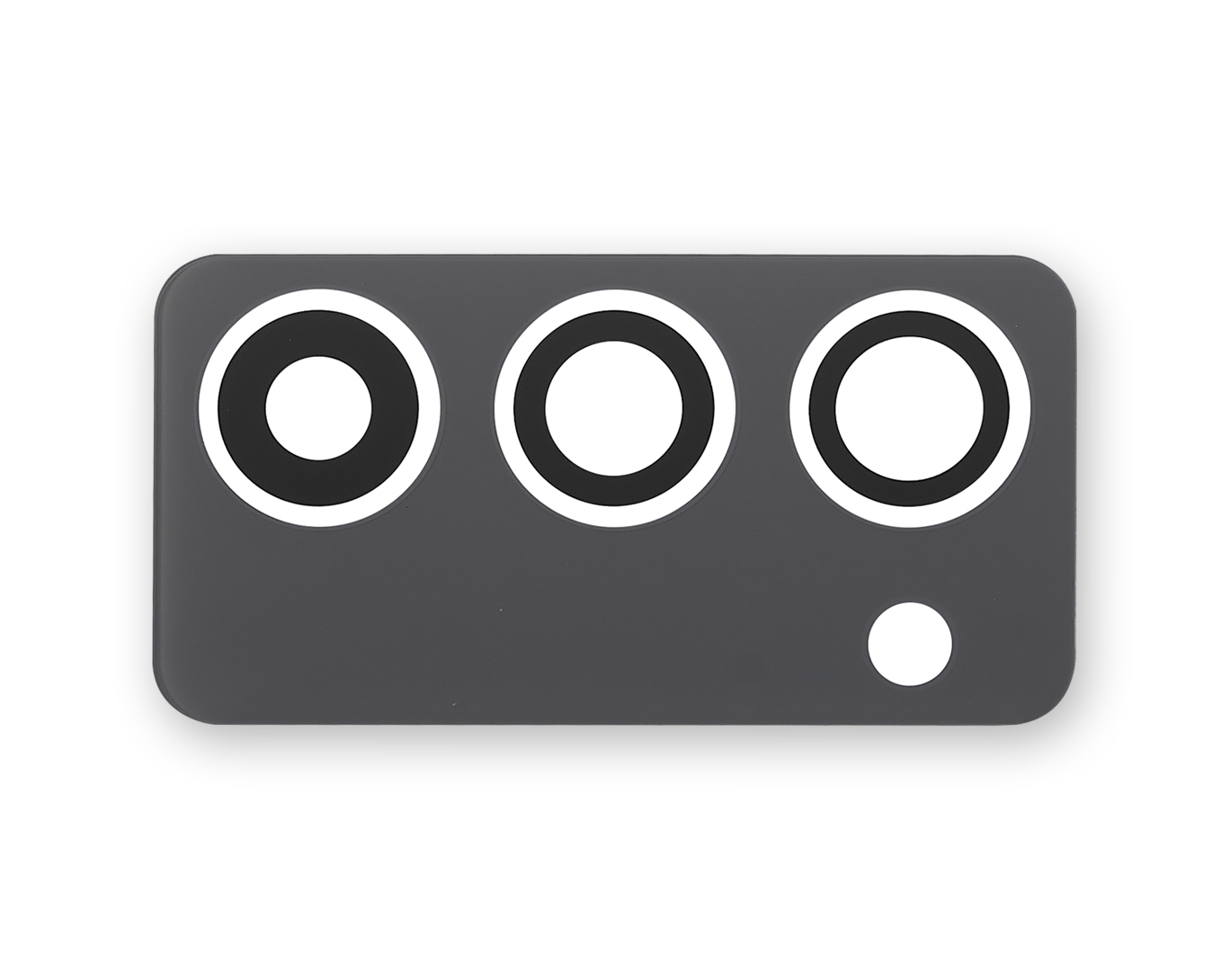

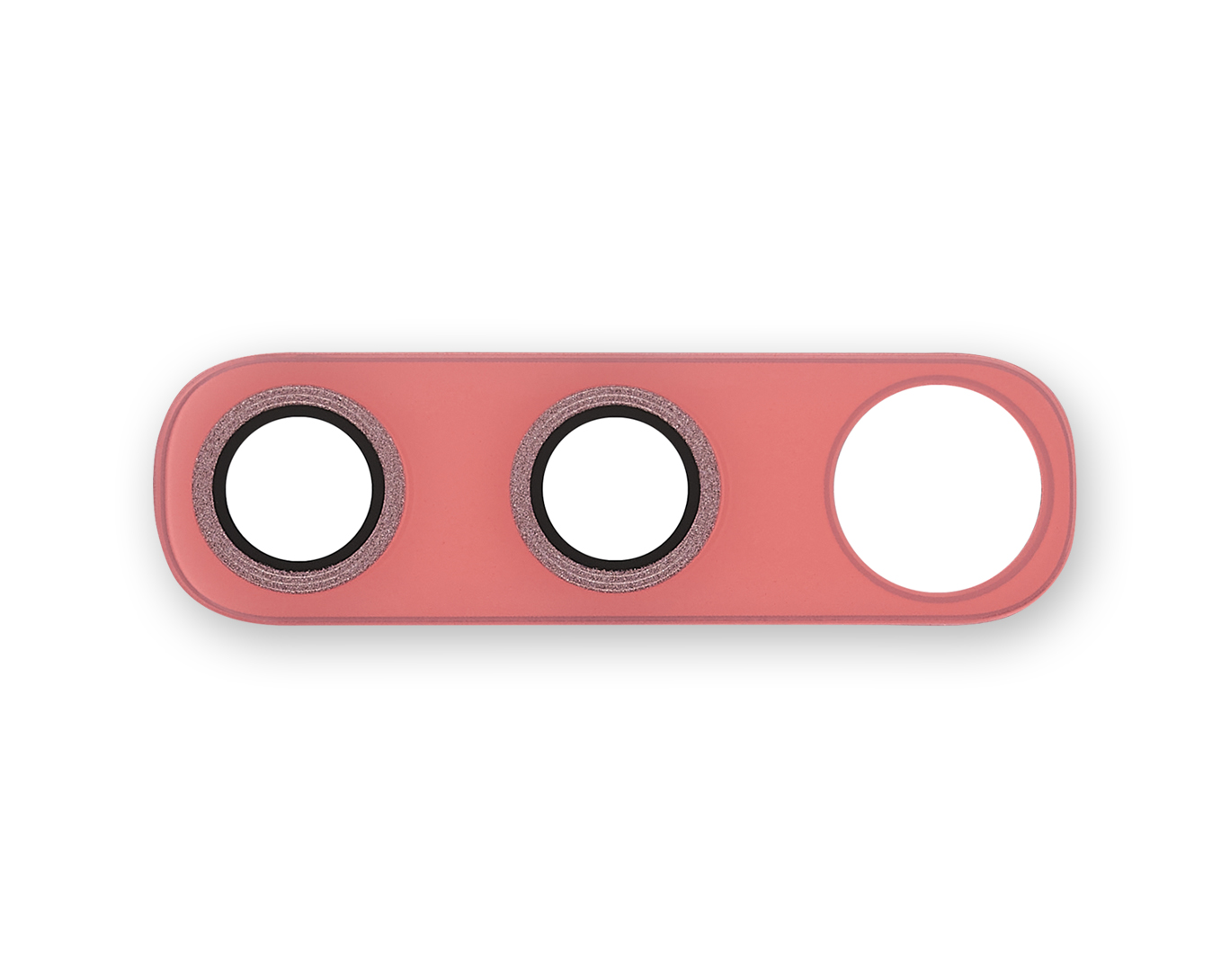

Camera Window Top Pattern
Layer Structure
- Pattern method to directly engrave a spin line on the window glass surface
- Our pattern has a high design merit with a brilliant spin compared to other companies' methods.
Production (Capability)
- All processes (Glass processing, DFR lamination, DES, Printing, AR/AF Coating) can be produced internally (16KK/month)

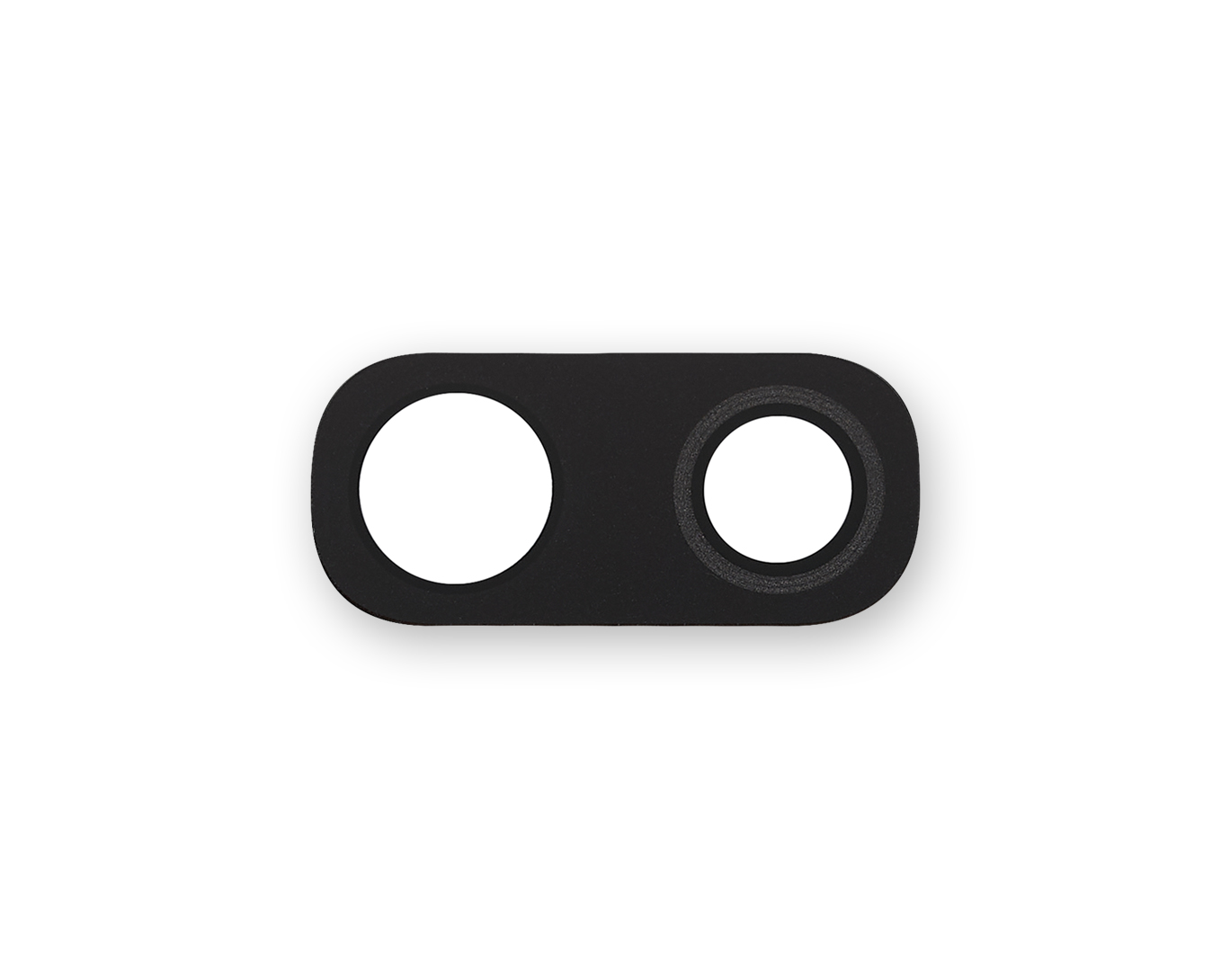

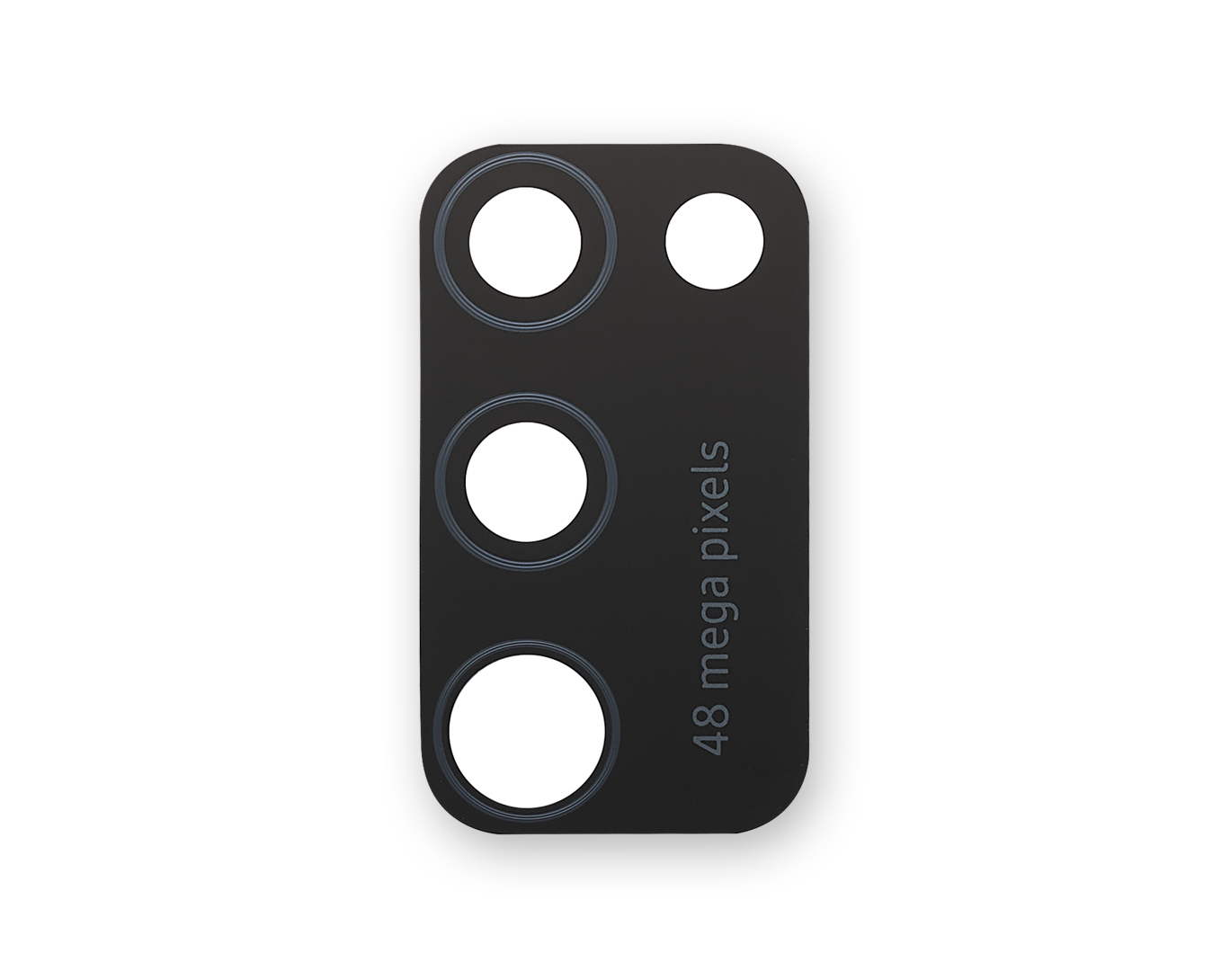

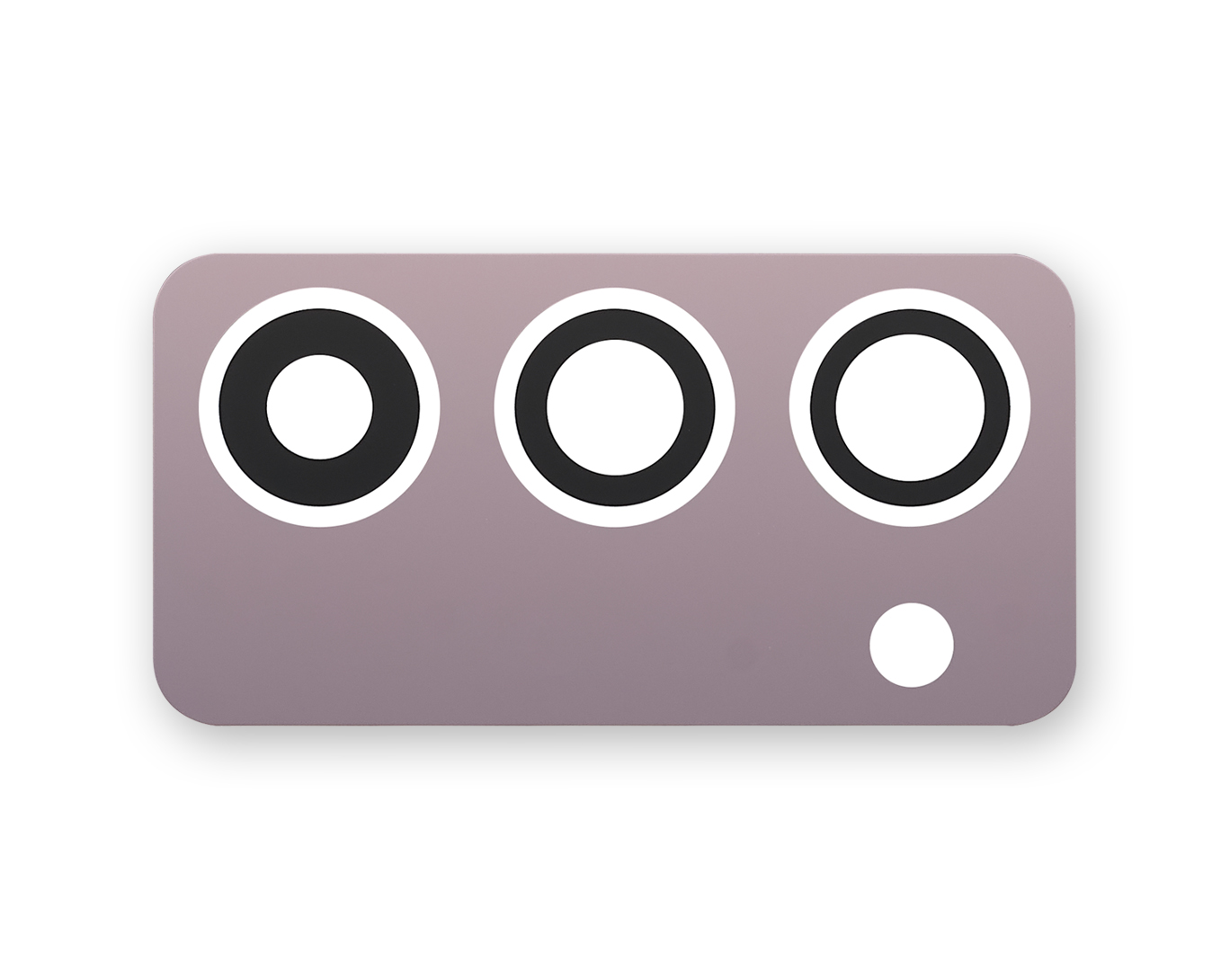

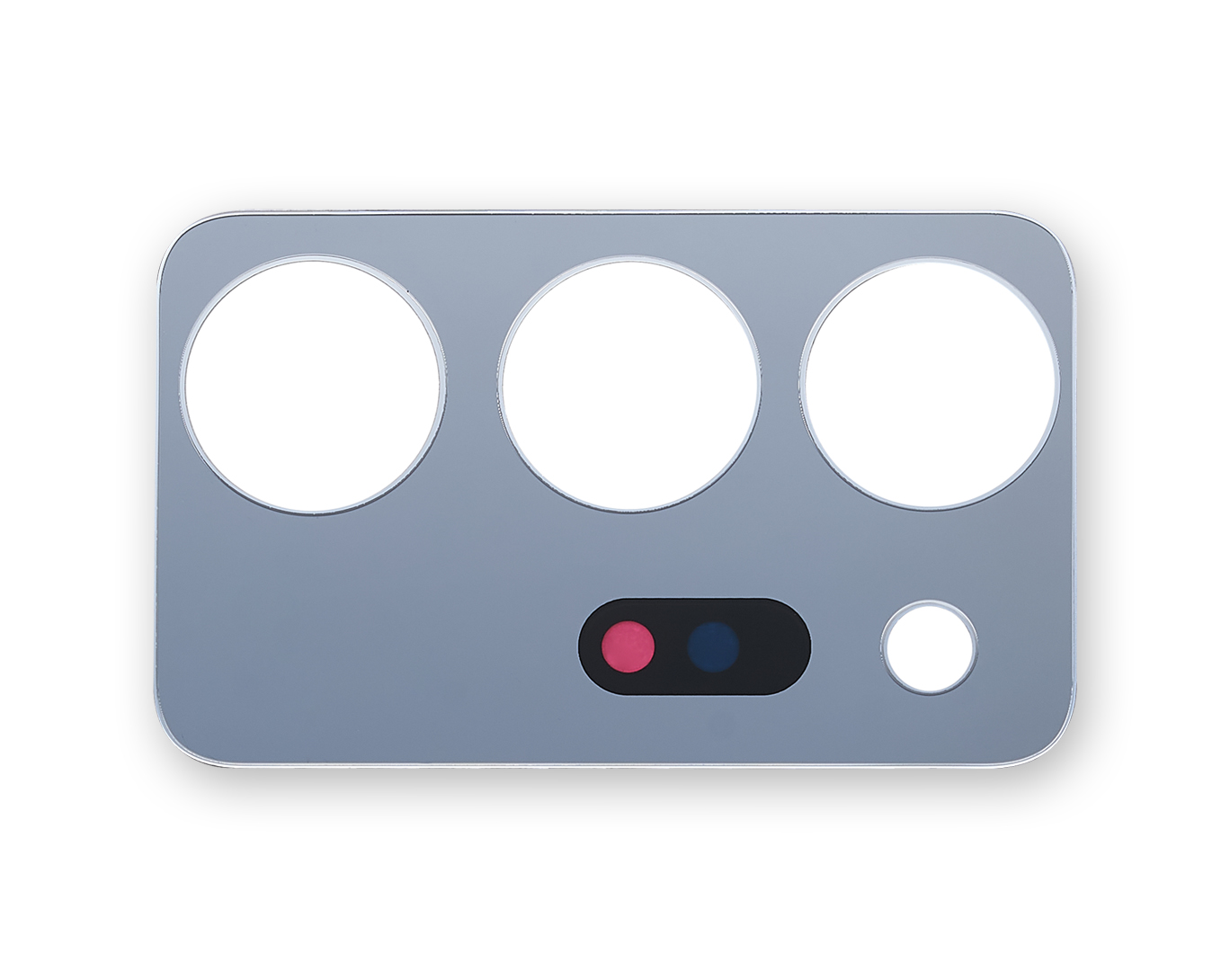

Camera Window High-transmittance AR
Layer Structure
- Pattern method to directly engrave a spin line on the window glass surface
- Our pattern has a high design merit with a brilliant spin compared to other companies' methods.
Production (Capability)
- All processes(Glass processing, Multi deposition, Printing, AR/AF Coating)
can be produced internally (16KK/month)

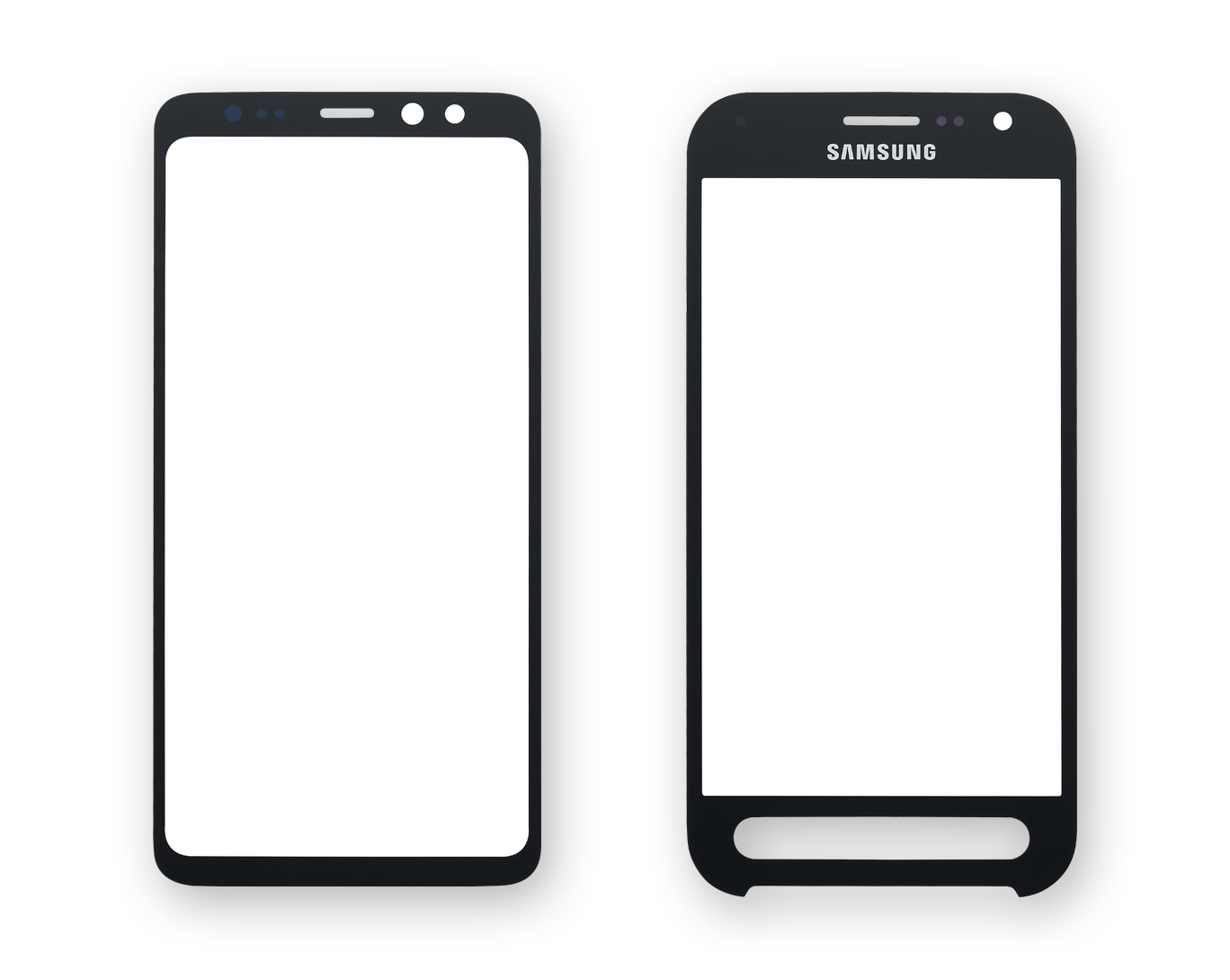

Highhardness Window
Layer Structure
Production (Capability)
- Glass printing, Lamination(Glass, High hardness) technology secured → production capable (900K/month)

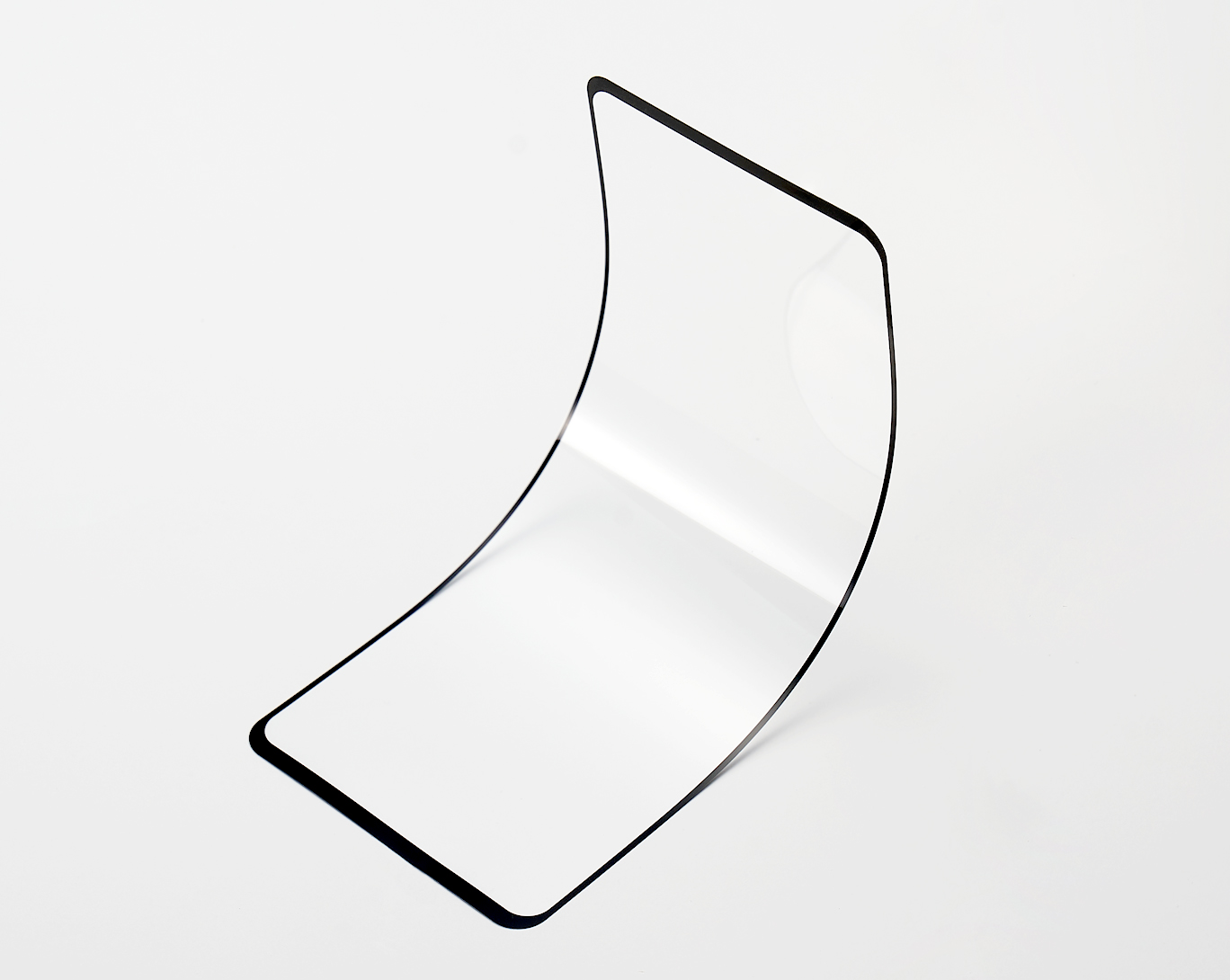

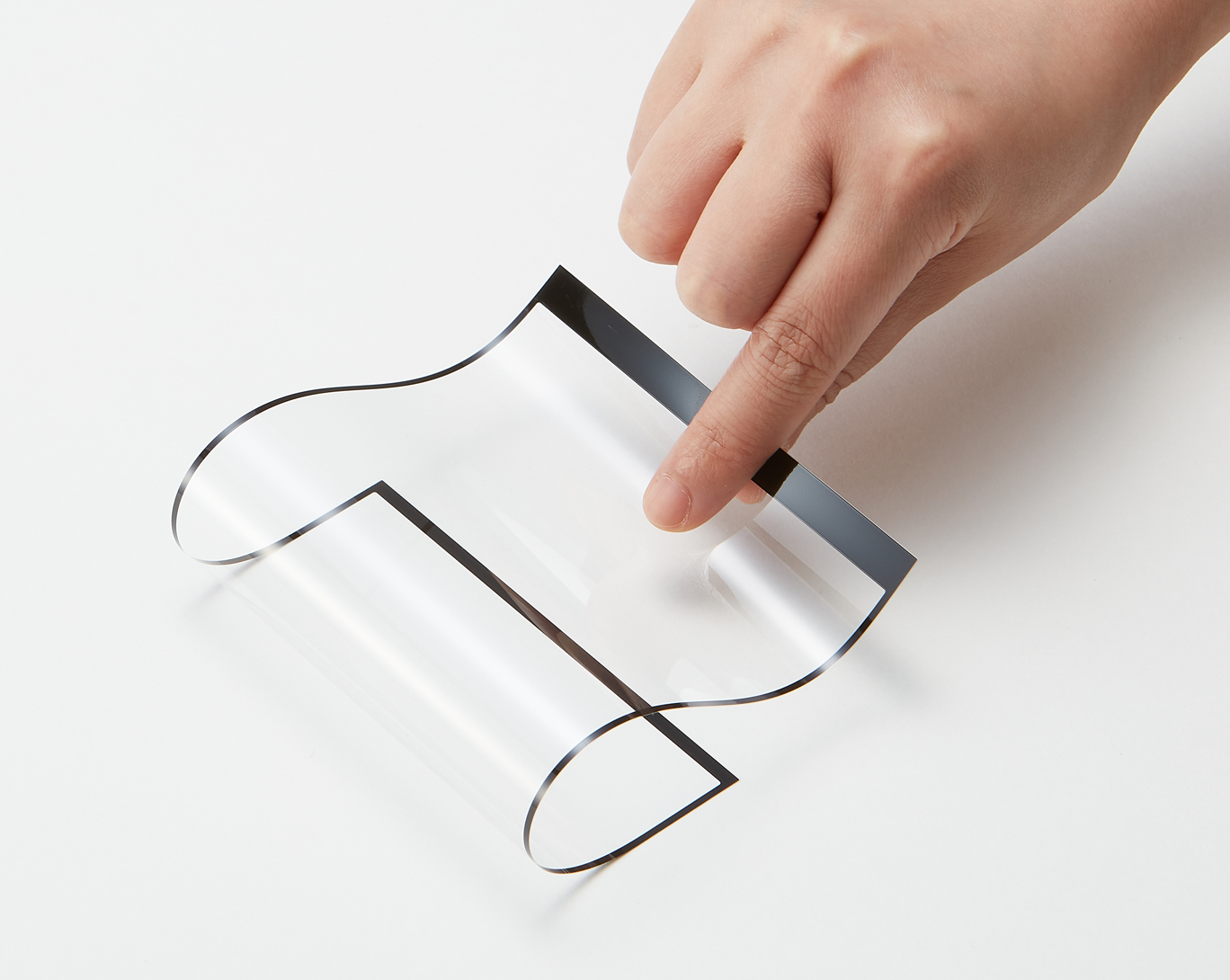

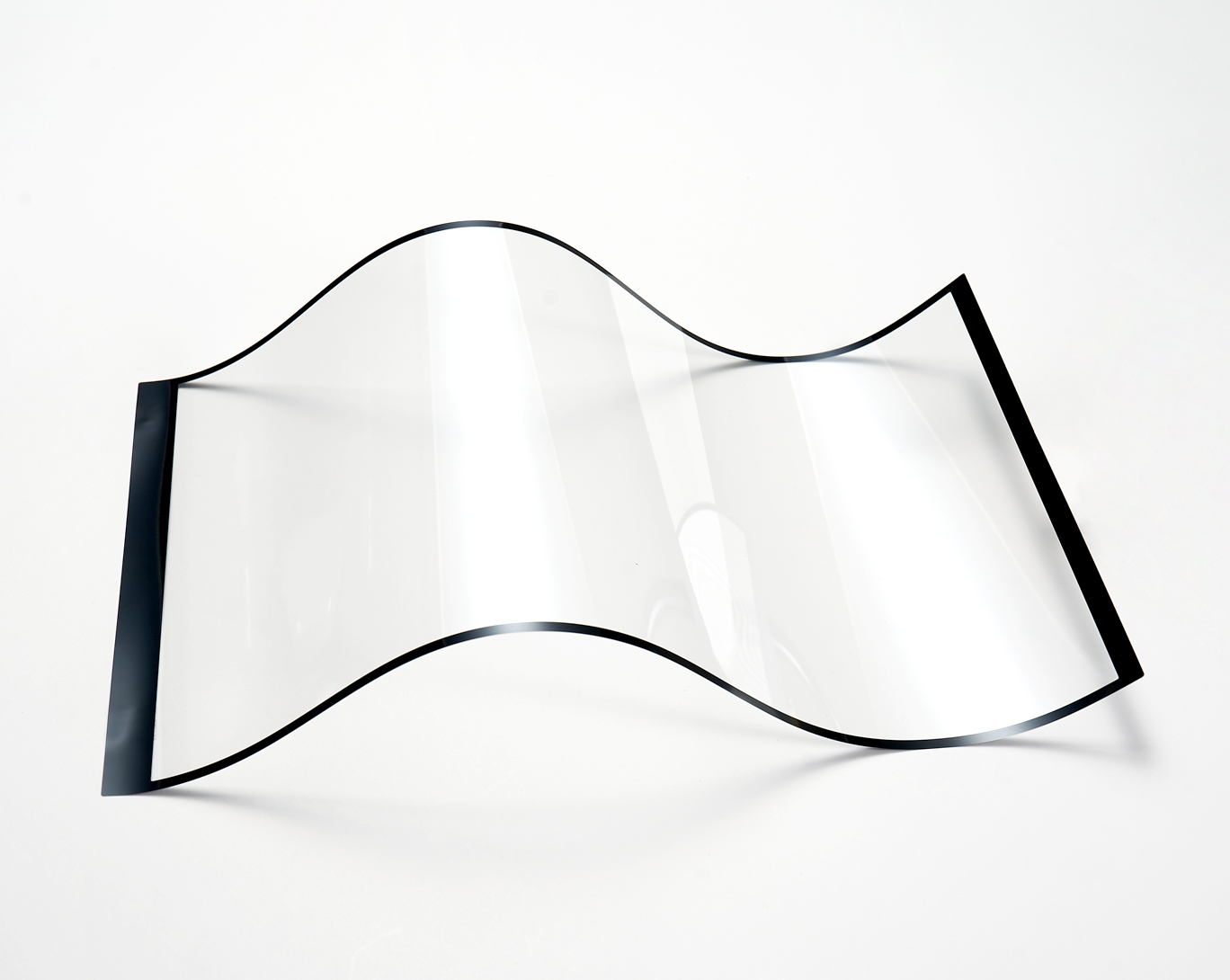

Foldable Window
Layer Structure
Technical Data Sheet
UTG (Ultra Thin Glass) | CPI (Coloreless Polyimid) | |
---|---|---|
Material | Glass | Polyimid |
Thickness | 30㎛, 50㎛, 70㎛ | 50㎛, 80㎛ |
Curvature | 30㎛–1R / 50㎛-1.5R / 70㎛-4R | 1.5R |
Folding Durability |
R=1.5R / 200K | R=1.5R / 200K |
Surface Hardness |
5H | 3H |
Transmittance | 93% | 90% |
Contact Angle | 115˚ | 115˚ |
Ball Drop | 32.65g(r=10mm) / 22㎝ | 50g(r=4㎜) / 50㎝ |
Haze | 0.2% | 0.56% |
